FPF2195BUCX - Fairchild

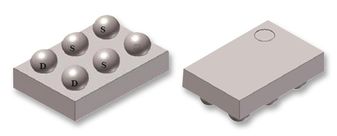

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FPF2195BUCX
Manufacturer

Fairchild
ChipWorker Part#

CW120631729
Category

Analog Switch Ic, Analog Switch Multiplexer
Package

WLCSP-6
Description

Current Limit SW 1IN 1Out 1.8V to 5.5V 1.5A 6Pin WLCSP T/R
Documentation

Datasheet

FPF2195BUCX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FPF2195BUCX Specifications

Attribute	Attribute Value

Part Number	FPF2195BUCX
Manufacturer	Fairchild
ChipWorker Part#	CW120631729
Category	Analog Switch Ic, Analog Switch Multiplexer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WLCSP-6
Power Rating	8.25 W
Number of Outputs	1 Output
Output Current	1.5 A
Power Dissipation	1.2 W
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.8 V
Output Current (Max)	1.5 A
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1200 mW
	expand all
Size-Length	0.98 mm
Size-Width	1.48 mm
Size-Height	0.62 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

In order to protect your system from any spikes of current or short circuiting you need this FPF2195BUCX load switch from Fairchild Semiconductor. This current limited load switch"s single output can produce a current up to 1.5 A. It only needs a voltage of at least 1.8 V while not exceeding 5.5 V to effectively power your circuit. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This current limited load switch has an operating temperature range of -40 °C to 85 °C.
