FSA8049UCX - ON Semiconductor

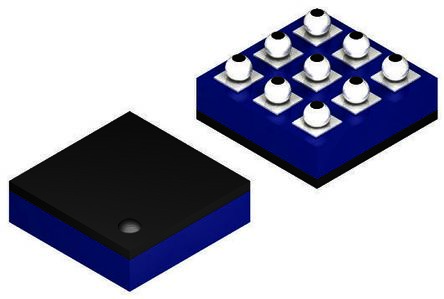

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

78 points

Part No

FSA8049UCX
Manufacturer

ON Semiconductor
ChipWorker Part#

CW3405942
Package

WLCSP-9
Description

Audio Jack Detection 9Pin WLCSP T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.27

Buy FSA8049UCX

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

FSA8049UCX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

FSA8049UCX Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	FSA8049UCX
Manufacturer	ON Semiconductor
ChipWorker Part#	CW3405942
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	9 Pin
Case/Package	WLCSP-9
Number of Channels	1 Channel
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5V ~ 4.4V
	expand all
Size-Length	1.16 mm
Size-Width	1.16 mm
Size-Height	0.378 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Product Description

The FSA8049 is an audio jack detection switch for 3- or 4-pole accessories. The FSA8049 detects the locations of ground (GND) and microphone (MIC) poles on the audio plug and automatically routes them to the appropriate connections. This allows the end user to plug accessories, such as headsets with different audio pole configurations, into the mobile device and have them operate correctly.￭ Detects 3- or 4-pole audio accessories￭ Detects polarity of GND and MIC on 4-pole plugs￭ Automatically routes GND and MIC to audio jack terminals
Features
---
|
Detection: Audio Plug GND & MIC Polarity
VDD: 2.5 to 4.4V
THD (MIC): 0.002% Typical
ESD (IEC 61000-4-2 Air Gap): 15kV
Operating Temperature: -40°C to 85°C
Package: 9-Ball WLCSP 3x3 Array, 0.4mm Terminal Pitch, 250µm Ball
Top Mark: M3
