FSB50250AS - Fairchild

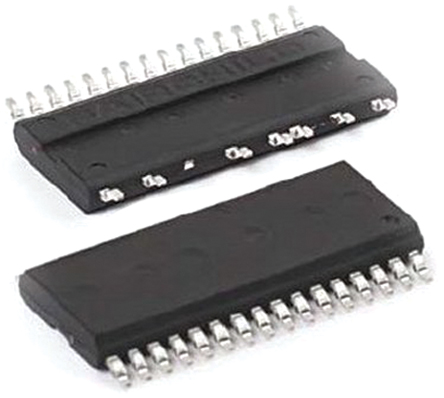

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSB50250AS
Manufacturer

Fairchild
ChipWorker Part#

CW96286252
Category

Power Supply Accessory
Package

SPM23-GD
Description

Motion SPM® 5 Series, 23LD,PDD STD,FULL PACK, SMD TYPE (SMD TYPE_TYPE 3 LF+UNIFET2+CU WIRE+BS DIODE), 450/TAPE REEL
Documentation

Datasheet

FSB50250AS Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSB50250AS Specifications

Attribute	Attribute Value

Part Number	FSB50250AS
Manufacturer	Fairchild
ChipWorker Part#	CW96286252
Category	Power Supply Accessory
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	23 Pin
Case/Package	SPM23-GD
Power Dissipation	13.4 W
Isolation Voltage	1500 Vrms
Switching Frequency	15 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	13400 mW
	expand all
Size-Length	29.2 mm
Size-Width	12.2 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
