FSBF10CH60BT - Fairchild

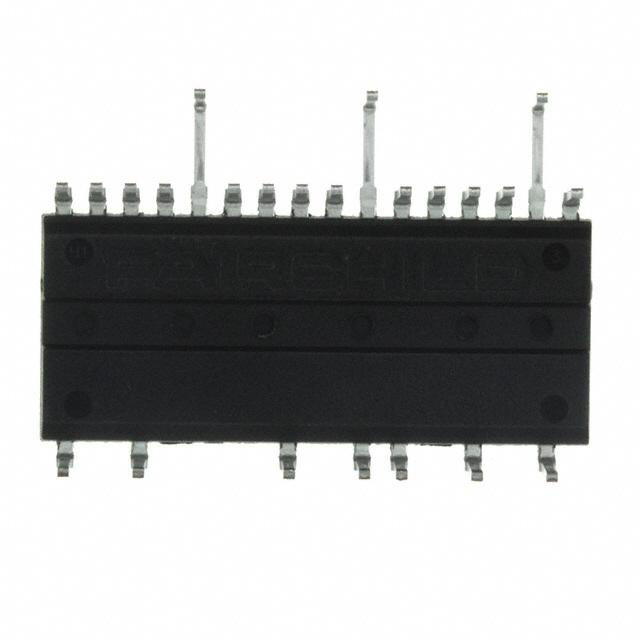

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSBF10CH60BT
Manufacturer

Fairchild
ChipWorker Part#

CW85513800
Category

IGBT Transistor, IGBT Module
Package

SPM27-JA
Description

Trans IGBT Module N-CH 600V 10A 27Pin SPM27-JA Rail
Documentation

Datasheet

FSBF10CH60BT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSBF10CH60BT Specifications

Attribute	Attribute Value

Part Number	FSBF10CH60BT
Manufacturer	Fairchild
ChipWorker Part#	CW85513800
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM27-JA
Frequency	20.0 kHz
Number of Outputs	3 Output
Input Voltage (DC)	253 V
Output Voltage	400 V
Output Current	10 A
Power Dissipation	20 W
Isolation Voltage	2500 Vrms
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	20000 mW
	expand all
Size-Length	44.2 mm
Size-Width	27 mm
Size-Height	5.05 mm
Operating Temperature	40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
