HEF4538BP ,Flip Flop IC - NXP

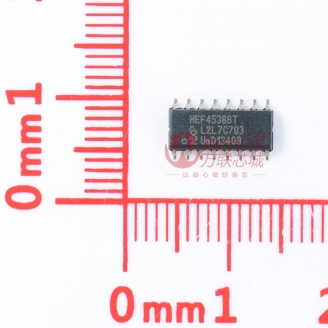

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

76 points

Part No

HEF4538BP
Manufacturer

NXP
ChipWorker Part#

CW121982544
Category

Flip Flop IC
Package

DIP
Description

Monostable Multivibrator Dual 16Pin PDIP
Documentation

Datasheet
Ships from

Moscow
Наличие

33558 pcs In Stock
Estimated Price

$ 0.01

Buy HEF4538BP

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HEF4538BP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HEF4538BP Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HEF4538BP
Manufacturer	NXP
ChipWorker Part#	CW121982544
Category	Flip Flop IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP
Supply Voltage (DC)	4.50V (min)
Output Current	2.4 mA
Number of Positions	16 Position
Number of Gates	2 Gate
Rise Time	20.0 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	15.5 V
Supply Voltage (Min)	4.5 V
	expand all
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The HEF4538BP is a dual retriggerable-resettable Monostable Multivibrator has an active low trigger/retrigger input (nA\\), an active high trigger/retrigger input (nB), an overriding active low direct reset input (nCD\\), an output (nQ) and its complement (nQ\\) and two pins (nREXT/CEXT and nCEXT, always connected to ground) for connecting the external timing components CEXT and REXT. Typical pulse width variation over the specified temperature range is ±0.2%. The multivibrator may be triggered by either the positive or the negative edges of the input pulse and will produce an accurate output pulse with a pulse width range of 10µs to infinity. The duration and accuracy of the output pulse are determined by the external timing components CEXT and REXT. The output pulse width (tW) is equal to REXT x CEXT. The linear design techniques in LOCMOS (Local Oxide CMOS) guarantee precise control of the output pulse width. A low level at nCD\ terminates the output pulse immediately.
