SP0503BAHTG ,TVS Diode - Littelfuse

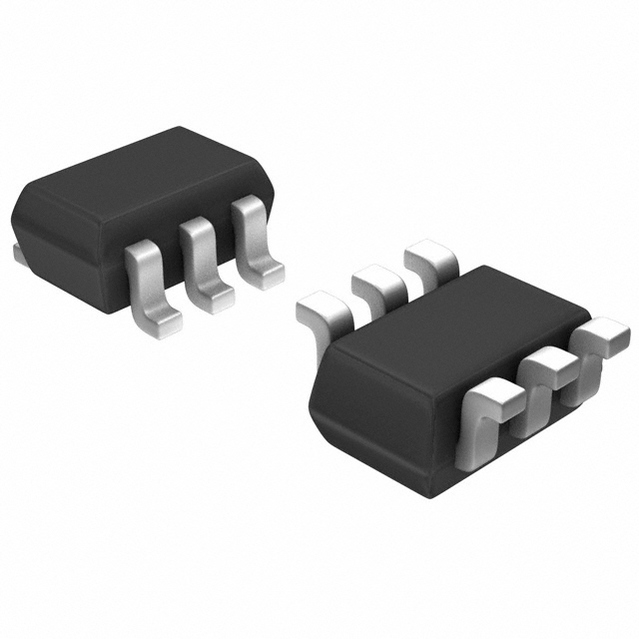

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

288 points

Part No

SP0503BAHTG
Manufacturer

Littelfuse
ChipWorker Part#

CW15122
Category

TVS Diode
Package

TO-253-4
Description

SP050xBA Series 8V 30pF Uni-Directional SMT TVS Avalanche Diode Array SOT-143
Documentation

Datasheet
Ships from

Moscow
Наличие

82630 pcs In Stock
Estimated Price

$ 0.06

Buy SP0503BAHTG

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SP0503BAHTG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SP0503BAHTG Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SP0503BAHTG
Manufacturer	Littelfuse
ChipWorker Part#	CW15122
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-253-4
Voltage Rating (DC)	5.00 V
Operating Voltage	5.5 V
Capacitance	30 pF
Breakdown Voltage	5.5 V
Number of Circuits	3 Circuit
Number of Channels	3 Channel
Number of Positions	4 Position
Power Dissipation	225 mW
Clamping Voltage	8 V
Test Current	10 mA
Peak Pulse Power	0.22 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	225 mW
	expand all
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.07 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The SP0503BAHTG is a 3-channel TVS Diode Array with copper/iron alloy leads, silicon substitute and moulded epoxy body. This surface mount family of arrays suppresses ESD and other transient overvoltage events. Used to meet the International electro technical compatibility (IEC transient immunity standards IEC 61000-4-2 for electrostatic discharge requirements), this device can help protect sensitive digital or analogue input circuits on data, signal or control lines with voltage levels up to 5VDC. The monolithic silicon arrays are comprised of specially designed structures for transient voltage suppression (TVS). The size and shape of these structures have be tailored for transient protection. The low capacitance and clamp voltage are ideal for high speed signal line protection.
<1ns Fast response time
30pF Typical low input capacitance
100nA Reverse standoff leakage current
30pF Capacitance
-55 to 125°C Operating temperature range
ESD sensitive device, take proper precaution while handling the device.
