OPB704 - TT Electronics/Optek Technology

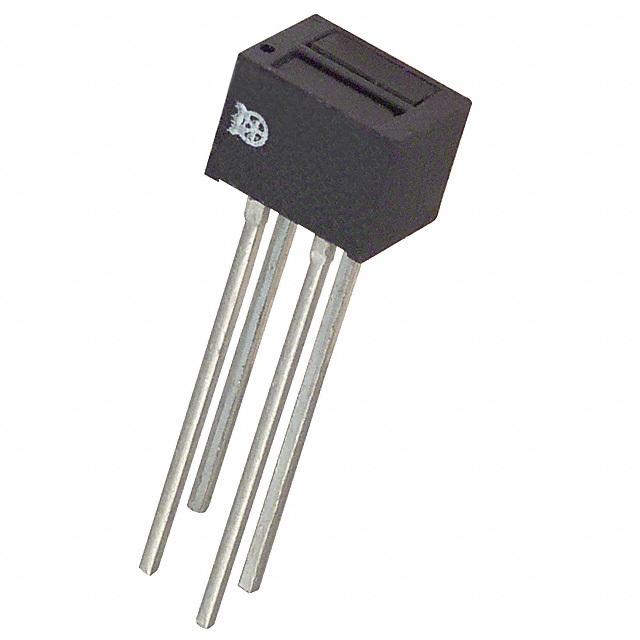

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OPB704
Manufacturer

TT Electronics/Optek Technology
ChipWorker Part#

CW8317146
Category

Photoelectric Sensor
Package

PCB Mount
Description

Sensor, Reflective, Phototransistor, 2V Emitter, 30V Detector, 890NM, 25mA
Documentation

Datasheet

OPB704 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OPB704 Specifications

Attribute	Attribute Value

Part Number	OPB704
Manufacturer	TT Electronics/Optek Technology
ChipWorker Part#	CW8317146
Category	Photoelectric Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	PCB Mount
Voltage Rating (DC)	30.0 V
Output Voltage	30.0 V
Number of Channels	1 Channel
Forward Voltage	1.7 V
Wavelength	890 nm
Input Current	40.0 mA
Peak Wavelength	890 nm
Power Dissipation	100 mW
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	40 mA
Forward Current (Max)	40 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
Supply Voltage	1.7 VDC
	expand all
Size-Length	17.8 mm
Size-Width	5.1 mm
Size-Height	22.9 mm
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The OPB704 is a Reflective Object Sensor consist of an infrared (890nm), light emitting diode (LED) and a NPN silicon phototransistor, mounted side-by-side on converging optical axes in a black plastic housing and are designed for PCBoard mounting. Blue window for dust protection.
0.16" Leads
