FSL116LR ,AC to DC Converter, AC/DC Power Module - Fairchild

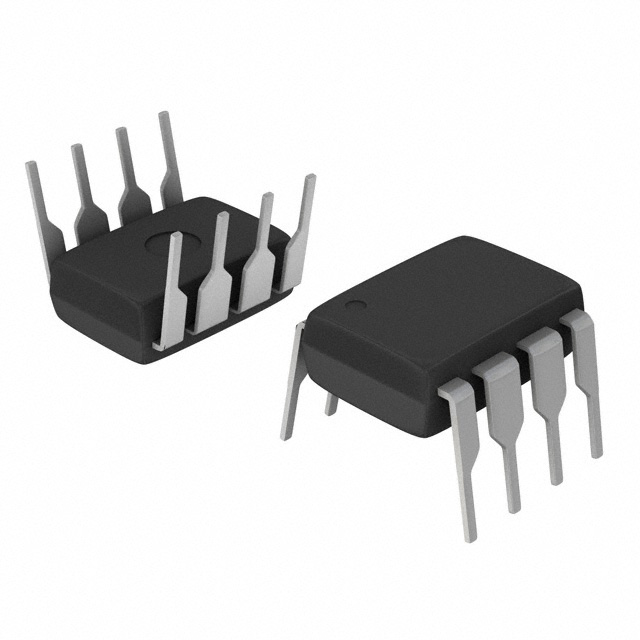

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

60 points

Part No

FSL116LR
Manufacturer

Fairchild
ChipWorker Part#

CW100042237
Category

AC to DC Converter, AC/DC Power Module
Package

DIP-8
Description

Power Switch 1Out 1.06A 7.3Ω 8Pin PDIP Rail
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1

Buy FSL116LR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

FSL116LR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

FSL116LR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	FSL116LR
Manufacturer	Fairchild
ChipWorker Part#	CW100042237
Category	AC to DC Converter, AC/DC Power Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Power Rating	16 W
Number of Outputs	1 Output
Input Voltage (DC)	26.0 V
Breakdown Voltage	650 V
Supply Current	2.5 mA
Number of Positions	8 Position
Power Dissipation	1.5 W
Switching Frequency	50 kHz
Duty Cycle	77 %
Output Current (Min)	1.06 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
Input Voltage	26 V
	expand all
Size-Height	3.68 mm
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

Description
The FSL116LR integrated Pulse Width Modulator (PWM) and SenseFET is specifically designed for high
performance offline Switch-Mode Power Supplies (SMPS) with minimal external components. FSL116LR includes integrated high-voltage power switching regulators that combine an avalanche-rugged SenseFET with a current-mode PWM control block.
Features
 Internal Avalanche-Rugged SenseFET (650V)
 Under 50mW Standby Power Consumption at 265VAC, No-load Condition with Burst Mode
 Precision Fixed Operating Frequency with Frequency Modulation for Attenuating EMI
 Internal Startup Circuit
 Built-in Soft-Start: 20ms
 Pulse-by-Pulse Current Limiting
 Various Protections: Over-Voltage Protection (OVP), Overload Protection (OLP), Output-Short Protection (OSP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown Function with Hysteresis (TSD)
 Auto-Restart Mode
 Under-Voltage Lockout (UVLO)
 Low Operating Current: 1.8mA
 Adjustable Peak Current Limit
Applications
 SMPS for VCR, STB, DVD, & DVCD Players
 SMPS for Home Appliance
 Adapter
