FSV12120V - ON Semiconductor

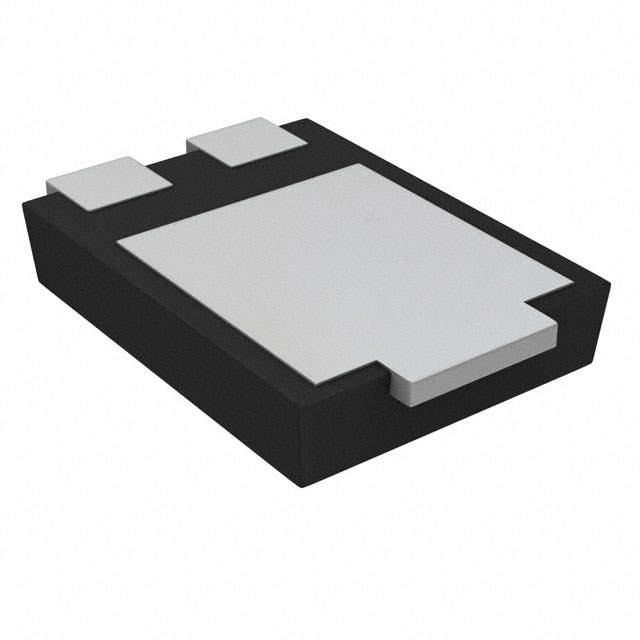

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FSV12120V
Manufacturer

ON Semiconductor
ChipWorker Part#

CW16165133
Package

TO-277-3
Description

12A, 120V Ultra-Low VF Schottky Rectifier
Documentation

Datasheet

FSV12120V Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FSV12120V Specifications

Attribute	Attribute Value

Part Number	FSV12120V
Manufacturer	ON Semiconductor
ChipWorker Part#	CW16165133
Documentation	Datasheet
Case/Package	TO-277-3
Number of Positions	3 Position
Forward Voltage	0.79 V
Forward Current	12000 mA
Max Forward Surge Current (Ifsm)	220 A
Maximum Forward Voltage (Max)	790 mV
Forward Current (Max)	12000 mA
Operating Temperature (Max)	150 ℃
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

FSV12120V
Features
---
|
Ultra-Low Forward Voltage Drop
Low Thermal Resistance
Very Low Profile: Typical Height of 1.1 mm
Trench Schottky Technology
RoHS Compliant
Green Molding Compound as per IEC61249 Standard
Lead Free in Compliance with EU RoHS 2011/65/EU Directive
Qualified per AEC-Q101 Rev. C Standard
