FXMA2102UMX - Fairchild

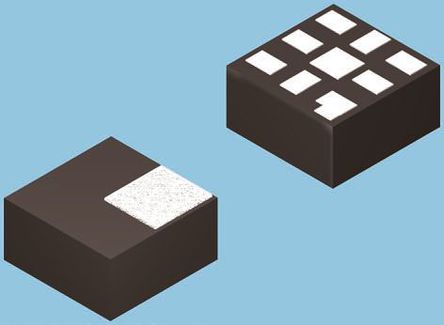

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FXMA2102UMX
Manufacturer

Fairchild
ChipWorker Part#

CW21206800
Category

Voltage Level Translator IC
Package

UFQFN-8
Description

Dual Supply Open Drain 2Bit Voltage Translator/Buffer/Repeater Isolator - MLP-8
Documentation

Datasheet

FXMA2102UMX Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FXMA2102UMX Specifications

Attribute	Attribute Value

Part Number	FXMA2102UMX
Manufacturer	Fairchild
ChipWorker Part#	CW21206800
Category	Voltage Level Translator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	UFQFN-8
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Bits	2 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Output Channels	1 Channel
Supply Voltage	1.65V ~ 5.5V
	expand all
Size-Length	1.4 mm
Size-Width	1.2 mm
Size-Height	0.525 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

* Bi-Directional Interface between any Two Levels from 1.65V to 5.5V * Direction Control not Needed * System GPIO Resources Not Required when OE Tied to VCCA * I2C 400pF Buffer / Repeater * I2C Bus Isolation * A/B Port VOL = 175mV (Typical), VIL = 150mV, IOL = 6mA * Open-Drain Inputs / Outputs * Accommodates Standard-Mode and Fast-Mode I2C-Bus Devices * Supports I2C Clock Stretching & Multi-Master * Fully Configurable: Inputs and Outputs Track VCC * Control INput (/OE) Referenced to VCCA * Non-Preferential Power-Up; Either VCC May Be Powered-Up First * Outputs Switch to 3-State if Either VCC is at GND * Tolerant Output Enable: 5V * Packaged in 8-Terminal Leadless MicroPak™ (1.6mm x 1.6mm) and Ultrathin MLP (1.2mm x 1.4m) * ESD Protection Exceeds: * 8kV HBM ESD (per JESD22-A114 & Mil Std 883e 3015.7) * 2kV HBM I/O to GND ESD (per JESD22-A114
