H1183NL - Pulse Electronics

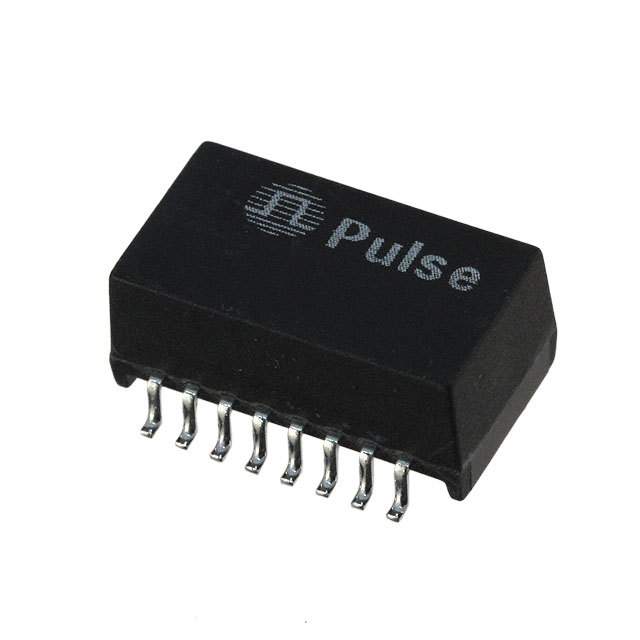

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

H1183NL
Manufacturer

Pulse Electronics
ChipWorker Part#

CW14226927
Category

Transformer
Description

Transformer: Ethernet; SMD; Trans: RX 1:1,TX 1:1; -1dB
Documentation

Datasheet

H1183NL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

H1183NL Specifications

Attribute	Attribute Value

Part Number	H1183NL
Manufacturer	Pulse Electronics
ChipWorker Part#	CW14226927
Category	Transformer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Number of Channels	1 Channel
Isolation Voltage	1.5 kV
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	expand all
Size-Length	12.7 mm
Size-Width	9.53 mm
Size-Height	5.97 mm
Weight	0.85 g
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

RoHS peak reflow temperature rating: 245°C
Meets IEEE 802.3 specification
Compact footprint for use in the most space restrictive applications
