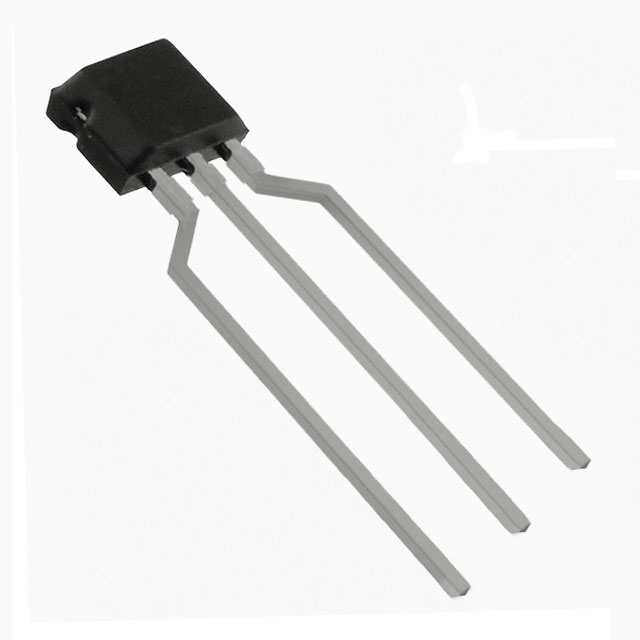

Board Mount Hall Effect / Magnetic Sensors 2-wire Hall Switch
Documentation

Datasheet
Ships from

Moscow
Наличие

2095 pcs In Stock
Estimated Price

$ 0.42

Buy HAL566UA-E

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HAL566UA-E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HAL566UA-E Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HAL566UA-E
Manufacturer	Micronas
ChipWorker Part#	CW383508531
Category	Magnetic Sensor
Documentation	Datasheet
	expand all
Product Lifecycle Status	Not Recommended for New Designs
RoHS	RoHS Compliant

Similar & Replacement Parts

Similar products

Product Description

Introduction
This sensor family consists of different two-wire Hall switches produced in CMOS technology. All sensors change the current consumption depending on the external magnetic field and require only two wires between sensor and evaluation circuit. The sensors of this family differ in the magnetic switching behavior and switching points.
The sensors include a temperature-compensated Hall plate with active offset compensation, a comparator, and a current source. The comparator compares the actual magnetic flux through the Hall plate (Hall voltage) with the fixed reference values (switching points).
Accordingly, the current source is switched on (high current consumption) or off (low current consumption).
Features
– current output for two-wire applications
– junction temperature range from −40 °C up to 140 °C.
– operates from 4 V to 24 V supply voltage
– operates with static magnetic fields and dynamic magnetic fields up to 10 kHz
– switching offset compensation at typically 145 kHz
– overvoltage and reverse-voltage protection
– magnetic characteristics are robust against mechanical stress effects
– constant magnetic switching points over a wide supply voltage range
– the decrease of magnetic flux density caused by rising temperature in the sensor system is compensated by a built-in negative temperature coefficient of the magnetic characteristics
– ideal sensor for applications in extreme automotive and industrial environments
– EMC corresponding to ISO 7637
