HCF4017 - ST Microelectronics

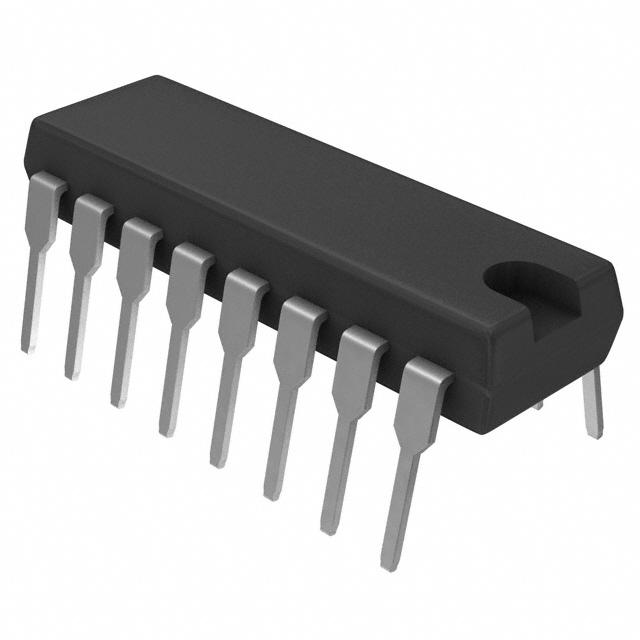

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HCF4017
Manufacturer

ST Microelectronics
ChipWorker Part#

CW532399135
RoHS

Lead free / RoHS Compliant
Description

DECADE COUNTER WITH 10 DECODED OUTPUTS
Documentation

Datasheet

HCF4017 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HCF4017 Specifications

Attribute	Attribute Value

Part Number	HCF4017
Manufacturer	ST Microelectronics
ChipWorker Part#	CW532399135
Documentation	Datasheet
	expand all
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

DESCRIPTION
The HCF4017B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. The HCF4017B is 5-stage Johnson counter having 10 decoded outputs. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. Schmitt trigger action in the clock input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times. This counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low.
■ MEDIUM SPEED OPERATION : 10 MHz (Typ.) at VDD= 10V
■ FULLY STATIC OPERATION
■ STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
■ QUIESCENT CURRENT SPECIFIED UP TO 20V
■ 5V, 10V AND 15V PARAMETRIC RATINGS
■ INPUT LEAKAGE CURRENT
II= 100nA (MAX) AT VDD= 18V TA= 25°C
■ 100% TESTED FOR QUIESCENT CURRENT
■ MEETS ALL REQUIREMENTS OF JEDEC JESD13B " STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES"
