HDO4034 - Teledyne Lecroy

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

HDO4034
Manufacturer

Teledyne Lecroy
ChipWorker Part#

CW103155174
Category

Oscilloscope
Description

350MHz, 4CH, 12Bit, 2.5 GS/s, 12.5 Mpts/Ch High Definition Oscilloscope w/ 12.1
Documentation

Datasheet

HDO4034 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

HDO4034 Specifications

Attribute	Attribute Value

Part Number	HDO4034
Manufacturer	Teledyne Lecroy
ChipWorker Part#	CW103155174
Category	Oscilloscope
Documentation	Datasheet
Number of Channels	4 Channel
Rise Time	1 ns
Bandwidth	350 MHz
Input Voltage (Max)	400 V
Supply Voltage	100VAC ~ 240VAC
	expand all
Weight	5.86 kg
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

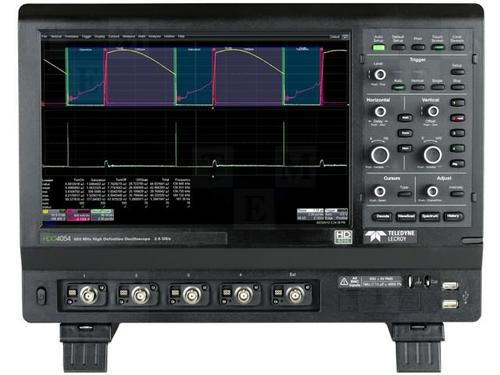

**HDO4000 High Definition Oscilloscopes**
The HDO4000 models offer precise measurements and quick debug. They combine Teledyne LeCroy"s HD4096 high definition technology with long memory, a compact form factor, 12.1 inch WXGA multi-touch display and powerful debug tools. Innovative rotating/tilting feet facilitate four different viewing positions for optimum flexibility in use.
* Teledyne LeCroy HD4096 high definition technology
* 12-bit ADC resolution
* Multi-language user interface
* Intuitive, efficient touch screen interface (e.g. for configuring channels, timebase, trigger)
* WaveScan advanced search and find (e.g. for runts, glitches)
* LabNotebook documentation and report generation (at single button press)
* History mode waveform playback
* Spectrum analyzer mode
**Supplied with**
Passive probes (1 per channel), Getting Started Guide, Anti-virus Software (Trial Version), Microsoft Windows Embedded Standard 7 P 64-Bit License, Commercial NIST Traceable Calibration with Certificate, power cable
**Teledyne LeCroy High Definition Oscilloscopes
**
