HDO4022 ,Oscilloscope - Teledyne Lecroy

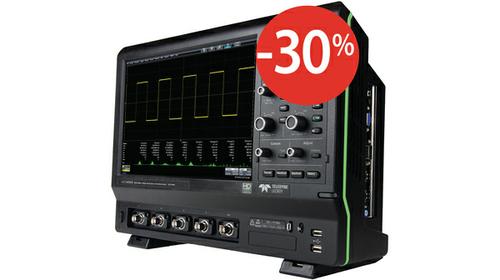

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

30 points

Part No

HDO4022
Manufacturer

Teledyne Lecroy
ChipWorker Part#

CW123888100
Category

Oscilloscope
Description

200MHz, 2CH, 12Bit, 2.5 GS/s, 12.5 Mpts/Ch High Definition Oscilloscope w/ 12.1
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 8909.98

Buy HDO4022

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HDO4022 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HDO4022 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HDO4022
Manufacturer	Teledyne Lecroy
ChipWorker Part#	CW123888100
Category	Oscilloscope
Documentation	Datasheet
Number of Channels	2 Channel
Rise Time	1.75 ns
Bandwidth	200 MHz
Input Voltage (Max)	400 V
Supply Voltage	100VAC ~ 240VAC
Input Voltage	100VAC ~ 240VAC
	expand all
Weight	5.86 kg
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

**HDO4000 High Definition Oscilloscope**
The HDO4000 models offer precise measurements and quick debug. They combine Teledyne LeCroy"s HD4096 high definition technology with long memory, a compact form factor, 12.1 inch WXGA multi-touch display and powerful debug tools. Innovative rotating/tilting feet facilitate four different viewing positions for optimum flexibility in use.
* Teledyne LeCroy HD4096 high definition technology
* 12-bit ADC resolution
* Multi-language user interface
* Intuitive, efficient touch screen interface (e.g. for configuring channels, timebase, trigger)
* WaveScan advanced search and find (e.g. for runts, glitches)
* LabNotebook documentation and report generation (at single button press)
* History mode waveform playback
* Spectrum analyzer mode
**Supplied with**
Passive probes (1 per channel), Getting Started Guide, Anti-virus Software (Trial Version), Microsoft Windows Embedded Standard 7 P 64-Bit License, Commercial NIST Traceable Calibration with Certificate, power cable
**Teledyne LeCroy High Definition Oscilloscope
**
