HE722A1200 ,Reed Relay - Littelfuse

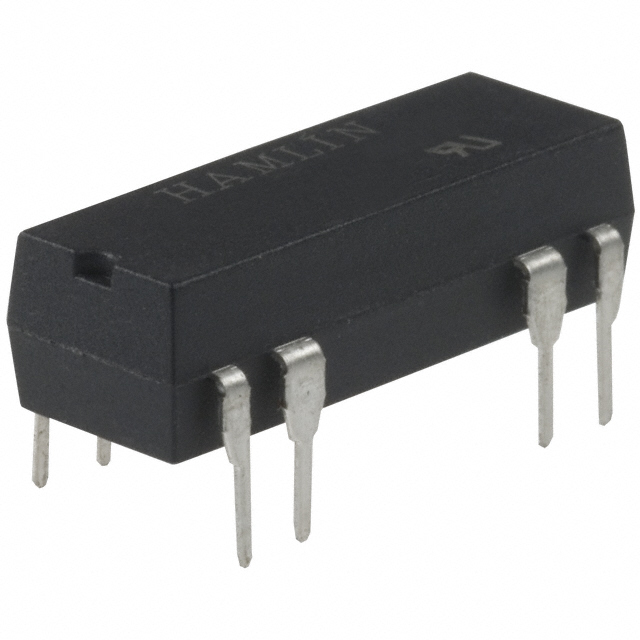

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

88 points

Part No

HE722A1200
Manufacturer

Littelfuse
ChipWorker Part#

CW34953986
Category

Reed Relay
Package

DIP
Description

Reed Relays 12VDC 500Ω 0.5A DPST-NO (( 19.5mm 9.52mm 5.5mm)) THT Dry
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.23

Buy HE722A1200

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HE722A1200 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HE722A1200 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HE722A1200
Manufacturer	Littelfuse
ChipWorker Part#	CW34953986
Category	Reed Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Voltage Rating (DC)	200 V
Contacts Type	DPST-NO
Contact Current Rating	0.5 A
Coil Voltage	12 VDC
Coil Current	24 mA
Coil Resistance	500 Ω
Carry Current	1.20 A
Coil Voltage (DC)	12 V
Input Power (Max)	10 W
Switching Current (Max)	0.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	150 mΩ
	expand all
Size-Length	19.1 mm
Size-Width	7.24 mm
Size-Height	5.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The HE700 series Reed Relay with choice of normally open, normally closed and change over contacts. The relay with various contacts choices reducing space without compromising flexibility. It has lower power coil consumption than competing electromechanical devices. Hermetically sealed switching contact is immune to the effects of its environment.
High voltage switching option
Magnetic shield option
Diode suppression option
Diagonal coil option
Transfer moulded package gives maximum component protection
Up to 2 normally open contacts
Available with 5/12/24V coil options as standard
