HMCAD1511 ,Analog to Digital, ADC IC - ADI

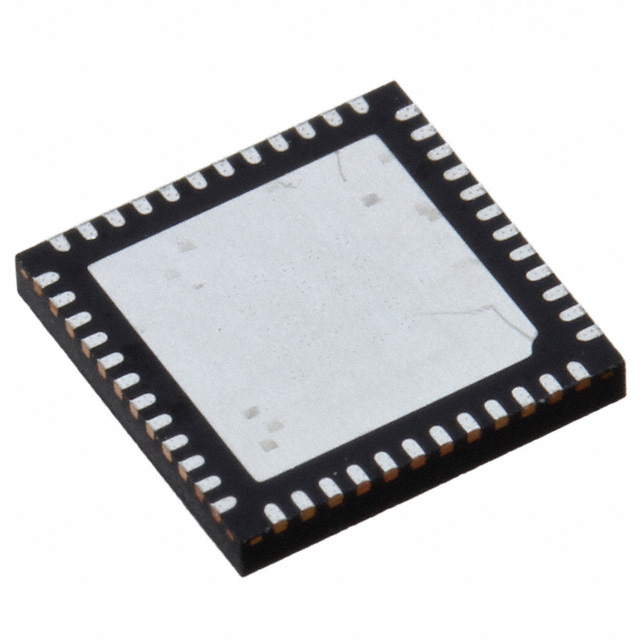

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

137 points

Part No

HMCAD1511
Manufacturer

ADI
ChipWorker Part#

CW3956338
Category

Analog to Digital, ADC IC
Package

QFN-48
Description

ANALOG DEVICES HMCAD1511 Analog to Digital Converter, 8Bit, 1GSPS, Single, 1.7V, 2V, QFN
Documentation

Datasheet
Ships from

Moscow
Наличие

410 pcs In Stock
Estimated Price

$ 66.1

Buy HMCAD1511

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

HMCAD1511 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

HMCAD1511 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	HMCAD1511
Manufacturer	ADI
ChipWorker Part#	CW3956338
Category	Analog to Digital, ADC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	QFN-48
Supply Voltage (DC)	1.70V (min)
Number of Positions	48 Position
Number of Bits	8 Bit
Power Dissipation	710 mW
Sample Rate	1.00 GHz
Number of ADCs	4 ADC
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	4 Channel
Supply Voltage (Max)	2 V
Supply Voltage (Min)	1.7 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	3A991.c.1

Similar & Replacement Parts

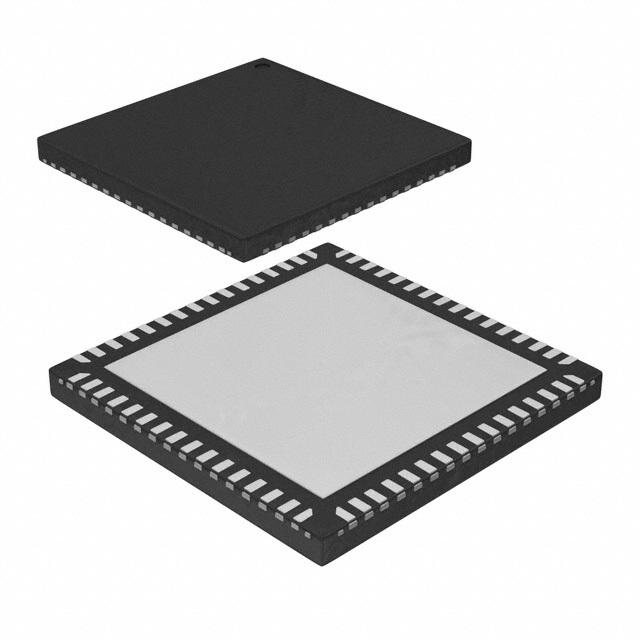

Similar products

Product Description

Product Details
The HMCAD1511 is a versatile high performance low power analog-to-digital converter (ADC), utilizing time-interleaving to increase sampling rate. Integrated Cross Point Switches activate the input selected by the user.
In single channel mode, one of the four inputs can be selected as a valid input to the single ADC channel. In dual channel mode, any two of the four inputs can be selected to each ADC channel. In quad channel mode, any input can be assigned to any ADC channel.
An internal, low jitter and programmable clock divider makes it possible to use a single clock source for all operational modes.
The HMCAD1511 is based on a proprietary structure, and employs internal reference circuitry, a serial control interface and serial LVDS/RS DS output data. Data and frame synchronization clocks are supplied for data capture at the receiver. Internal 1 to 50X digital coarse gain with ENOB > 7.5 up to 16X gain, allows digital implementation of oscilloscope gain settings. Internal digital fine gain can be set separately for each ADC to calibrate for gain errors.
Various modes and configuration settings can be applied to the ADC through the serial control interface (SPI). Each channel can be powered down independently and data format can be selected through this interface. A full chip idle mode can be set by a single external pin. Register settings determine the exact function of this pin.
HMCAD1511 is designed to easily interface with Field Programmable Gate Arrays (FPGAs) from several vendors.
**Applications**
USB Powered Oscilloscopes
Digital Oscilloscopes
Satellite Receivers
### Features and Benefits
8-bit High Speed Single/ Dual/ Quad ADC
Single Channel Mode: FSmax = 1000 MSPS
Dual Channel Mode: FSmax = 500 MSPS
Quad Channel Mode: FSmax = 250 MSPS
Integrated Cross Point Switches (Mux Array)
1X to 50X digital gain
No missing codes up to 32X
1X gain: 49.8 dB SNR
10X gain: 48.2 dB SNR
Internal low jitter programmable Clock Divider
Ultra Low Power Dissipation
710 mW including I/O at 1000 MSPS
0.5 μs start-up time from Sleep, 15 μs from Power Down
Internal reference circuitry with no external components required
Coarse and fine gain control
Digital fine gain adjustment for each ADC
Internal offset correction
1.8 V supply voltage
1.7 - 3.6 V CMOS logic on control interface pins
Serial LVDS/RS DS output
7x7 mm QFN 48 Pin (LP7D) Package
