ILD256T ,Optocoupler, Optoisolator - VISHAY

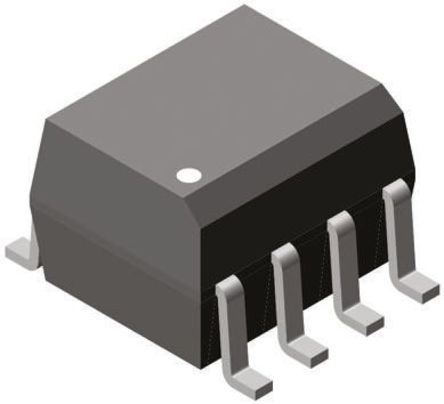

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

95 points

Part No

ILD256T
Manufacturer

VISHAY
ChipWorker Part#

CW53450189
Category

Optocoupler, Optoisolator
Package

SOIC-8
Description

Optocoupler AC-IN 2CH Transistor DC-OUT 8Pin SOIC N T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

1 pcs In Stock
Estimated Price

$ 1.57

Buy ILD256T

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ILD256T Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ILD256T Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ILD256T
Manufacturer	VISHAY
ChipWorker Part#	CW53450189
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Channels	2 Channel
Number of Positions	8 Position
Forward Voltage	1.2 V
Input Current	30 mA
Power Dissipation	0.3 W
Isolation Voltage	4000 Vrms
Forward Current	30 mA
Output Voltage (Max)	70 V
Input Current (Min)	30 mA
Maximum Forward Voltage (Max)	1.55 V
Forward Current (Max)	30 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	expand all
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Product Description

The ILD256T is a 2-channel 8-pin Phototransistor Output Optocoupler with bidirectional AC input. It consists of two infrared emitters coupled to a silicon NPN phototransistor detector. It is well suited for telecom applications such as ring detection or off/on hook status, given its bidirectional LED input and guaranteed current transfer ratio (CTR) of 20% at IF=10mA.
2:1 Maximum CTR symmetry
30mA Forward continuous current
-55 to +100°C Operating temperature range
