ADG719 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

28 points

Part No

ADG719
Manufacturer

ADI
ChipWorker Part#

CW983479633
Description

CMOS 1.8V to 5.5V, 2.5Ω 2:1 Mux/SPDT Switch in SOT-23
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy ADG719

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ADG719 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ADG719 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ADG719
Manufacturer	ADI
ChipWorker Part#	CW983479633
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Similar products

Product Description

Product Details

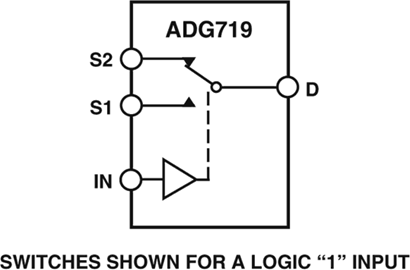

The ADG719 is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.
The ADG719 can operate from a single-supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.
Each switch of the ADG719 conducts equally well in both directions when on. The ADG719 exhibits break-before-make switching action.
Because of the advanced submicron process, −3 dB bandwidths of greater than 200 MHz can be achieved.
The ADG719 is available in a 6-lead SOT-23 package and an 8-lead MSOP package.
The ADG719-EP supports Military and Aerospace Applications.
**PRODUCT HIGHLIGHTS**
1. 1.8 V to 5.5 V Single-Supply Operation. The ADG719 offers high performance, including low on resistance and fast switching times, and is fully specified and guaranteed with 3 V and 5 V supply rails.
2. Very Low RON (4 Ω Max at 5 V and 10 Ω Max at 3 V). At 1.8 V operation, RON is typically 40 Ω over the temperature range.
3. Automotive Temperature Range: −40°C to +125°C.
4. On Resistance Flatness (RFLAT(ON)) (0.75 Ω typ).
5. −3 dB Bandwidth > 200 MHz.
6. Low Power Dissipation. CMOS construction ensures low power dissipation.
7. Fast tON/tOFF.
8. Tiny, 6-lead SOT-23 and 8-lead MSOP packages.
**Applications**
Battery Powered Systems
Communication Systems
Sample Hold Systems
Audio Signal Routing
Video Switching
Mechanical Reed Relay Replacement
### Features and Benefits
1.8 V to 5.5 V single supply
4 Ω (max) on resistance
0.75 Ω (Typ) On-Resistance Flatness
-3 dB Bandwidth >200 MHz
Rail-to-Rail Operation
6-Lead SOT-23 package and 8-Lead MSOP package
Fast Switching Times
tON12 ns
tOFF6 ns
Typical Power Consumption (<0.01 µW)
TTL/CMOS Compatible
ADG719-EP supports defense and aerospace applications (AQEC standard)
Download ADG719-EP data sheet (pdf)
MilitaryTemperature Range: −55°C to +125°C
Controlled Manufacturing Baseline
Enhanced Product Change Notification
Qualification data Available on Request
V62/12650 DSCC Drawing Number
