ICL7660SIPAZ ,DC to DC Converter - Intersil

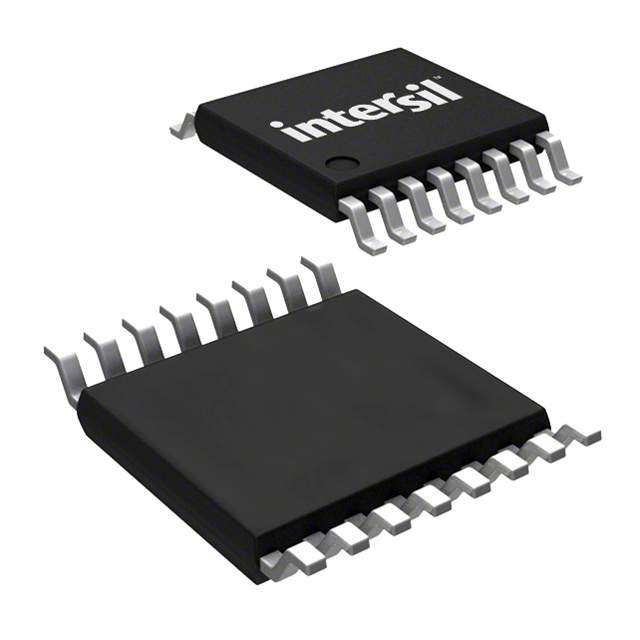

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

147 points

Part No

ICL7660SIPAZ
Manufacturer

Intersil
ChipWorker Part#

CW25397123
Category

DC to DC Converter
Package

DIP-8
Description

INTERSIL ICL7660SIPAZ DC-DC Adjustable Charge Pump Voltage Converter, 1.5V to 12V in, -12V to -1.5V/45mA out, DIP-8
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.63

Buy ICL7660SIPAZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ICL7660SIPAZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ICL7660SIPAZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ICL7660SIPAZ
Manufacturer	Intersil
ChipWorker Part#	CW25397123
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	10 kHz
Supply Voltage (DC)	12.0V (max)
Number of Outputs	1 Output
Output Voltage	22.8 V
Output Current	45 mA
Supply Current	0.16 mA
Number of Positions	8 Position
Switching Frequency	10kHz, 35kHz
Input Voltage (Max)	12 V
Input Voltage (Min)	1.5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	1.5 V
Input Voltage	1.5V ~ 12V
	expand all
Size-Length	10.16 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The ICL7660SIPAZ is a monolithic CMOS charge-pump Super Voltage Converter ICs that guarantees significant performance advantages over other similar devices. It is direct replacements for the industry standard ICL7660 offering an extended operating supply voltage range up to 12V with lower supply current. A frequency boost pin has been incorporated to enable the user to achieve lower output impedance despite using smaller capacitors. It performs supply voltage conversions from positive to negative for an input range of 1.5 to 12V, resulting in complementary output voltages of -1.5 to -12V. Only two non-critical external capacitors are needed, for the charge-pump and charge reservoir functions. It can be connected to function as a voltage doubler and will generate up to 22.8 with a 12V input. It can also be used as a voltage multipliers or voltage dividers. Each chip contains a series DC power supply regulator, RC oscillator, voltage level translator and four output power MOS switches.
Guaranteed lower maximum supply current for all temperature ranges
Boost pin (pin 1) for higher switching frequency
Improved SCR latch-up protection
Easy to use, requires only two external non-critical passive components
100% Tested at 3V
Guaranteed minimum power efficiency of 96%
Improved minimum open circuit voltage conversion efficiency of 99%
Simple conversion of 5V logic supply to ±5V supplies
Simple voltage multiplication VOUT = (-)nVIN
Improved direct replacement for industry standard ICL7660 and other second source devices
