ZTX653 - Diodes

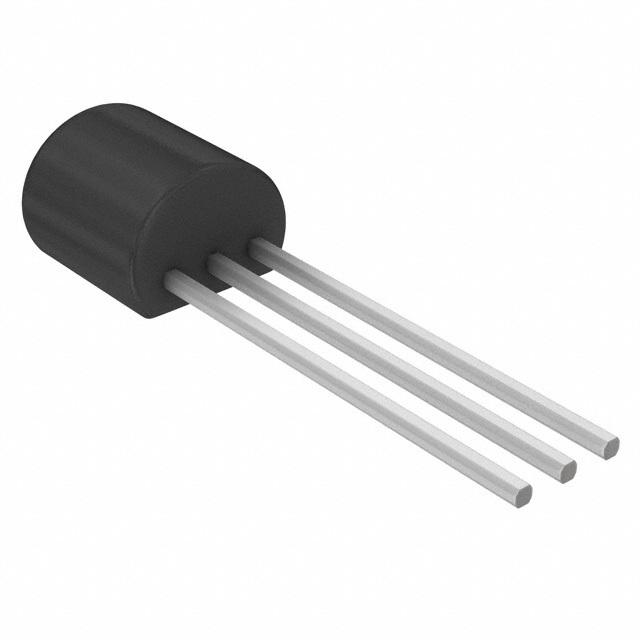

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ZTX653
Manufacturer

Diodes
ChipWorker Part#

CW6632958
Category

BJT Transistor, BJT
RoHS

Lead free / RoHS Compliant
Description

Trans GP BJT NPN 100V 2A 1000mW Automotive 3Pin E-Line
Documentation

Datasheet

ZTX653 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ZTX653 Specifications

Attribute	Attribute Value

Part Number	ZTX653
Manufacturer	Diodes
ChipWorker Part#	CW6632958
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Frequency	175 MHz
Voltage Rating (DC)	100 V
Current Rating	2.00 A
Power Rating	1 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1 W
Gain Bandwidth Product	175 MHz
Breakdown Voltage (Collector to Emitter)	100 V
Continuous Collector Current	2A
hFE Min	100
Input Power (Max)	1 W
DC Current Gain (hFE)	100
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	expand all
Size-Length	4.77 mm
Size-Width	2.41 mm
Size-Height	4.01 mm
Material	Silicon
Operating Temperature	-55℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

ZTX653 Series NPN 2 A 100 V Silicon Planar Medium Power Transistor - TO-92-3
