IDD06E60 - Infineon

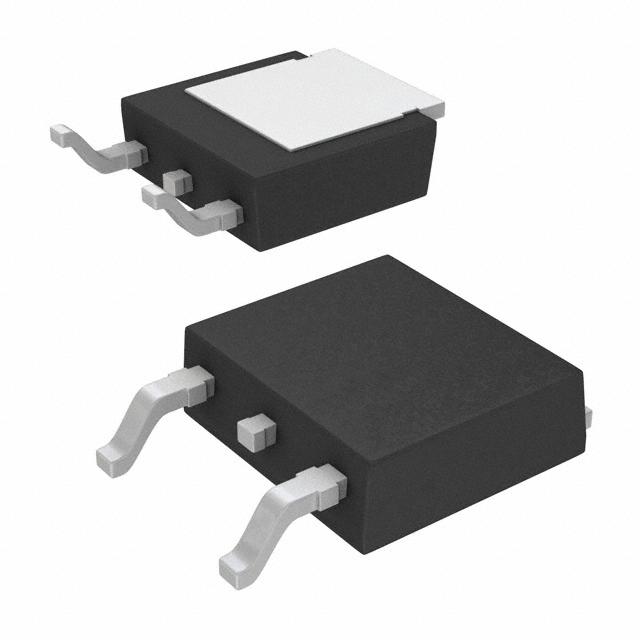

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IDD06E60
Manufacturer

Infineon
ChipWorker Part#

CW79777769
Category

Schottky Diode
Package

TO-252-3
Description

DIODE SWITCH 600V 14.7A TO252-3
Documentation

Datasheet

IDD06E60 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IDD06E60 Specifications

Attribute	Attribute Value

Part Number	IDD06E60
Manufacturer	Infineon
ChipWorker Part#	CW79777769
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Forward Voltage	2 V
Power Dissipation	46.8 W
Reverse recovery time	70 ns
Forward Current	6 A
Max Forward Surge Current (Ifsm)	29 A
Maximum Forward Voltage (Max)	2V @6A
Forward Current (Max)	6 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	46.8 W
	expand all
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Summary of Features:
Lowest V F values
Softest diodes available on the market
T j(max) of 175°C
Qualified according to JEDEC Standard
Cooler packages and higher efficiency
Excellent EMI behavior
Excellent trade- off between cost and performance
Low conduction losses
Easy paralleling
