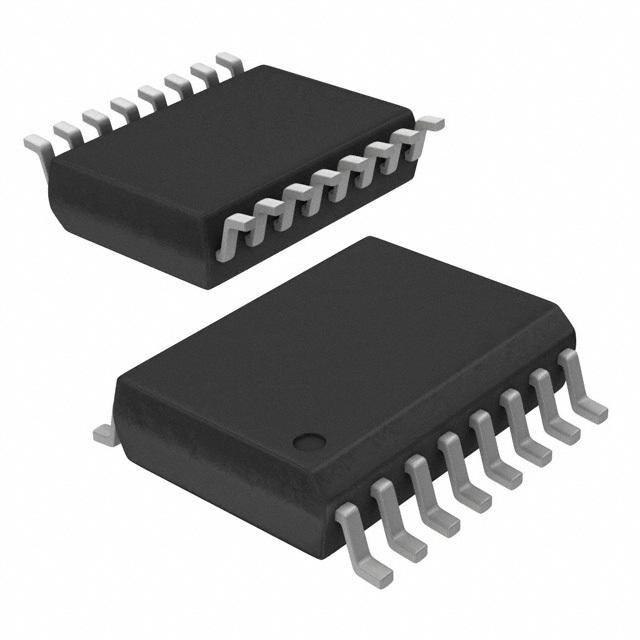

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

102 points

Part No

IL715E
Manufacturer

NVE Corp
ChipWorker Part#

CW44237265
Category

Interface Isolator, Digital Isolator
Package

SOIC-16
Description

NVE IL715E Digital Isolator, 4Channel, 10ns, 3V, 5.5V, SOIC, 16Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request
