ILD207T ,Optocoupler, Optoisolator - VISHAY

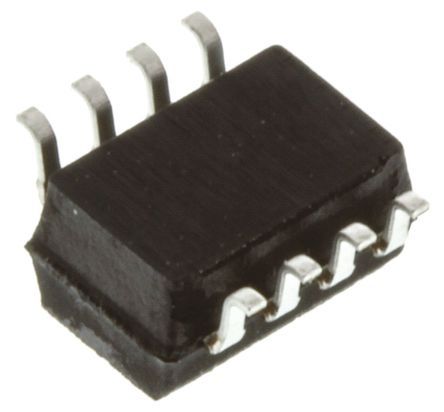

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

182 points

Part No

ILD207T
Manufacturer

VISHAY
ChipWorker Part#

CW131096
Category

Optocoupler, Optoisolator
Package

SOIC-8
Description

ILD207T Series Dual Channel 70V 4000Vrms Phototransistor Optocoupler - SOIC-8
Documentation

Datasheet
Ships from

Moscow
Наличие

2620 pcs In Stock
Estimated Price

$ 0.33

Buy ILD207T

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ILD207T Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ILD207T Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ILD207T
Manufacturer	VISHAY
ChipWorker Part#	CW131096
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Voltage Rating (DC)	1.20 V
Rise/Fall Time	3μs, 4.7μs
Output Voltage	70.0 V
Number of Channels	2 Channel
Number of Positions	8 Position
Forward Voltage	1.55 V
Input Current	10.0 mA
Power Dissipation	0.3 W
Rise Time	0.005 ms
Isolation Voltage	4000 Vrms
Forward Current	30 mA
Output Voltage (Max)	70 V
Input Current (Min)	30 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.55 V
Forward Current (Max)	30 mA
Fall Time	0.004 ms
	expand all
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

ELD207(TA)

Everlight Electronics

TEXTOOL 208-7391-55-1902

31 шт.

17.41 $/шт.

Product Description

The ILD207T is a Phototransistor Output Optocoupler with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. It come in a standard SOIC-8A small outline package for surface mounting which makes it ideally suited for high density applications with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices.
Two channel coupler
Compatible with dual wave, vapour phase and IR reflow soldering
