INA131BP - TI

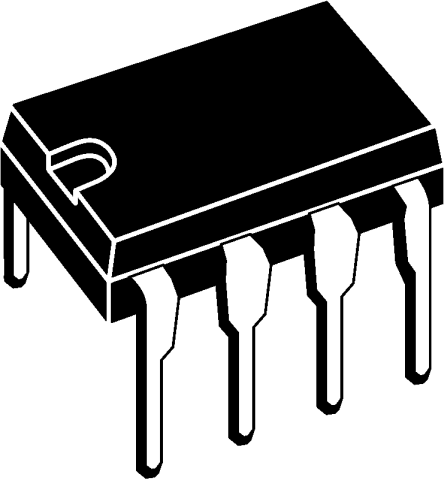

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoINA131BP
-
ManufacturerTI
-
ChipWorker Part#CW3076665
-
CategoryInstrumentation Amplifier IC
-
PackagePDIP-8
-
DescriptionTEXAS INSTRUMENTS INA131BP Instrument Amplifier, 3, 50V, 0.7V/ s, 70kHz, 2.25V to 18V, DIP
-
