IR2127SPBF - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IR2127SPBF
Manufacturer

Infineon
ChipWorker Part#

CW2880204
Category

FET Driver
RoHS

Lead free / RoHS Compliant
Description

MOSFET DRVR 600V 0.5A 1Out Hi Side Non-Inv 8Pin SOIC
Documentation

Datasheet

IR2127SPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IR2127SPBF Specifications

Attribute	Attribute Value

Part Number	IR2127SPBF
Manufacturer	Infineon
ChipWorker Part#	CW2880204
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	10.0V (min)
Power Rating	625 mW
Rise/Fall Time	80ns, 40ns
Number of Outputs	1 Output
Output Voltage	620 V
Output Current	250 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	625 mW
Quiescent Current	60 µA
Rise Time	80 ns
Fall Time	40 ns
Fall Time (Max)	65 ns
Fall Time (Max)	130 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	625 mW
Supply Voltage	12V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

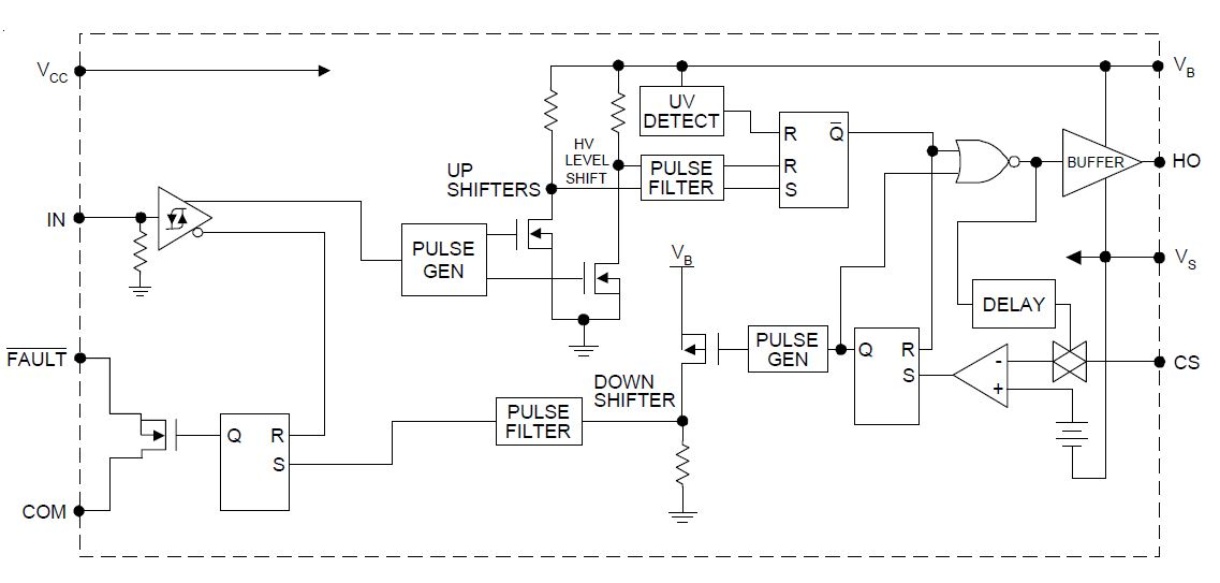

The IR2127SPBF is a single-channel current sensing high voltage high speed power MOSFET and IGBT Driver with the proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V. The protection circuitry detects over-current in the driven power transistor and terminates the gate drive voltage. An open drain FAULT signal is provided to indicate that an over-current shutdown has occurred. The output driver features a high pulse current buffer stage designed for minimum cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side or low-side configuration which operates up to 600V.
Floating channel designed for bootstrap operation
Tolerant to negative transient voltage (dV/dt immune)
Under-voltage lockout
3.3, 5 and 15V Input logic compatible
FAULT\ lead indicates shutdown has occurred
Output in phase with input
