IR2132SPBF ,FET Driver - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

134 points

Part No

IR2132SPBF
Manufacturer

Infineon
ChipWorker Part#

CW12132706
Category

FET Driver
Package

SOIC-28
Description

Infineon IR2132SPBF, Hex MOSFET Power Driver 0.5A Three Phase, 10 → 20V, Inverting, 28Pin SOIC W
Documentation

Datasheet
Ships from

Moscow
Наличие

1 pcs In Stock
Estimated Price

$ 13.21

Buy IR2132SPBF

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

IR2132SPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

IR2132SPBF Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	IR2132SPBF
Manufacturer	Infineon
ChipWorker Part#	CW12132706
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Supply Voltage (DC)	10.0V (min)
Rise/Fall Time	80ns, 35ns
Number of Outputs	6 Output
Output Voltage	10.20 V
Output Current	420 mA
Number of Channels	3 Channel
Power Dissipation	1600 mw
Fall Time (Max)	55 ns
Fall Time (Max)	125 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1600 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	expand all
Size-Length	18.1 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

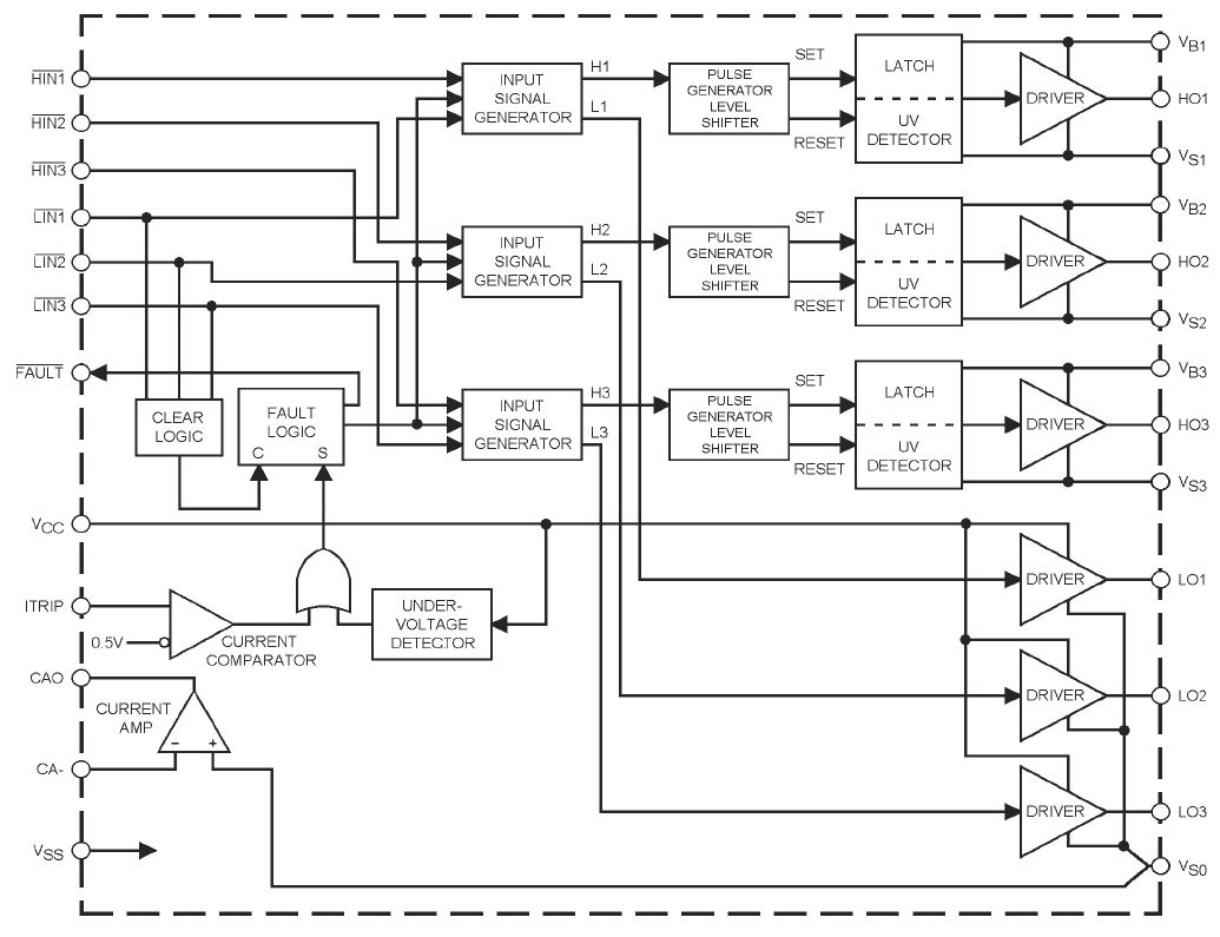

Summary of Features:
Floating channel designed for bootstrap operation
Fully operational to +600 V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply range from 10 to 20 V
Undervoltage lockout for all channels
Typical deadtime 0.8 µs (IR2132) option available
Typical deadtime 2.5 µs (IR2130 )
Over-current shutdown turns off all six drivers
Independent half-bridge drivers
Matched propagation delay for all channels
2.5 V logic compatible
Outputs out of phase with inputs
Cross-conduction prevention logic
