IR4428 - International Rectifier

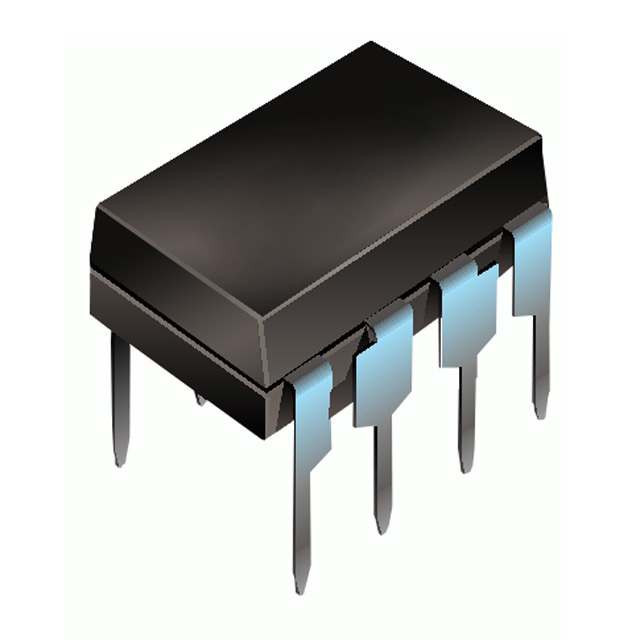

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IR4428
Manufacturer

International Rectifier
ChipWorker Part#

CW497778906
Category

FET Driver
Description

Dual Low Side Driver, Half Inverting Input in a 8Pin DIP packagee
Documentation

Datasheet

IR4428 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IR4428 Specifications

Attribute	Attribute Value

Part Number	IR4428
Manufacturer	International Rectifier
ChipWorker Part#	CW497778906
Category	FET Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	20.0V (max)
Number of Outputs	2 Output
Output Voltage	≥6.00 V
Part Family	IR4428
Supply Voltage	6V ~ 20V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

IO+/- 1.5A / 1.5A
VOUT 6V - 20V
ton/off(typ.) 85 & 65 ns
Descriptions
The IR4426/IR4427/IR4428 (S) is a low voltage, high speed power MOSFET and IGBT driver. Proprietary latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The output drivers feature a high
pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays between two channels are matched.
Features
•Gate drive supply range from 6 to 20V
•CMOS Schmitt-triggered inputs
•Matched propagation delay for both channels
•Outputs out of phase with inputs (IR4426)
•Outputs in phase with inputs (IR4427)
•OutputA out of phase with inputA and
OutputB in phase with inputB (IR4428)
•Also available LEAD-FREE
