IRF6218PBF - Infineon

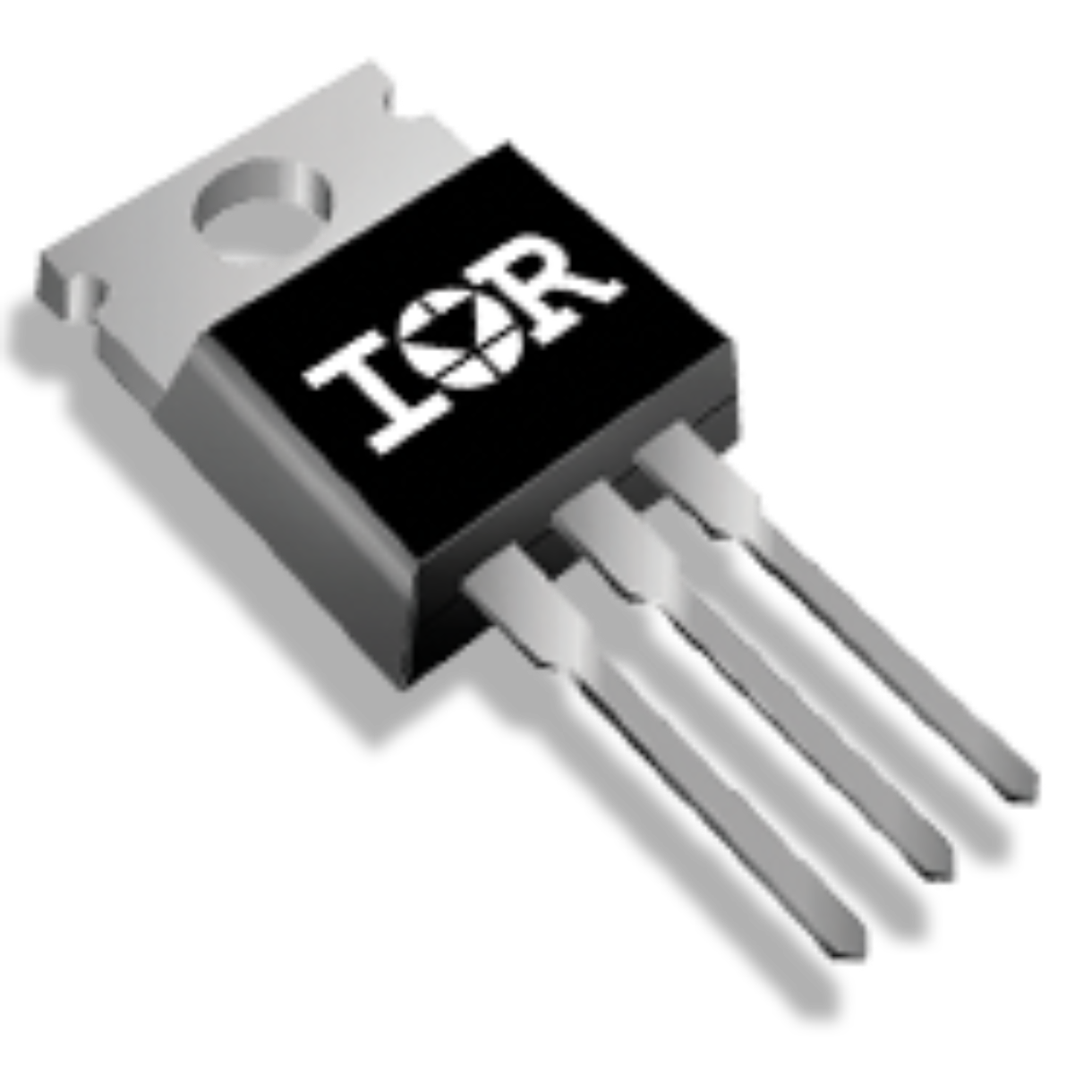

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF6218PBF
Manufacturer

Infineon
ChipWorker Part#

CW5876800
Category

MOSFET, MOSFET Transistor
RoHS

Lead free / RoHS Compliant
Description

Trans MOSFET P-CH 150V 27A 3Pin(3+Tab) TO-220AB
Documentation

Datasheet

IRF6218PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF6218PBF Specifications

Attribute	Attribute Value

Part Number	IRF6218PBF
Manufacturer	Infineon
ChipWorker Part#	CW5876800
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	250 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.15 Ω
Polarity	P-Channel
Power Dissipation	250 W
Drain to Source Voltage (Vds)	150 V
Breakdown Voltage (Drain to Source)	150 V
Rise Time	70 ns
Input Capacitance (Ciss)	2210pF @25V(Vds)
Input Power (Max)	250 W
Fall Time	30 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	250W (Tc)
	expand all
Size-Length	10 mm
Size-Width	4.4 mm
Size-Height	15.65 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRF6218PBF is a -150V single P-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using advanced planar technology.
175°C Operating temperature
Low gate to drain charge to reduce switching loss
Fully characterized capacitance and avalanche SOA
