IRF6775MTR1PBF - International Rectifier

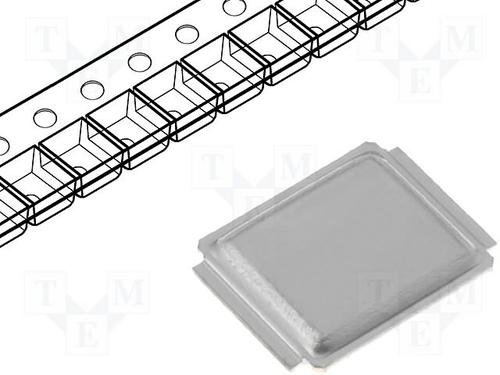

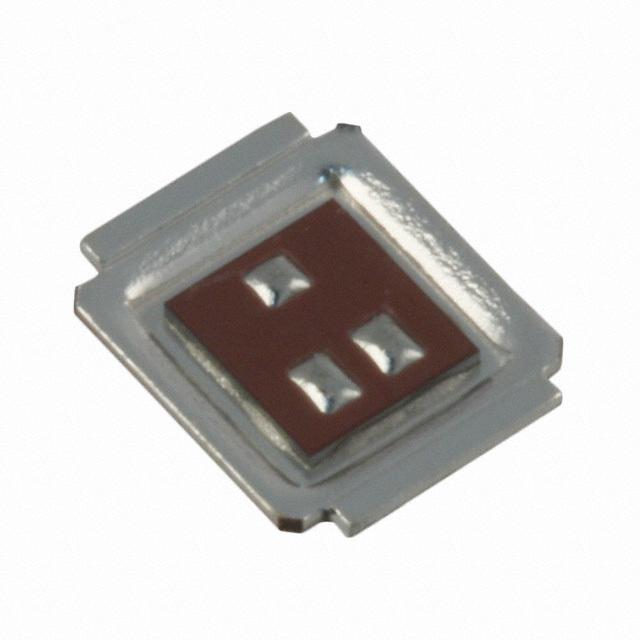

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF6775MTR1PBF
Manufacturer

International Rectifier
ChipWorker Part#

CW364273309
Category

MOSFET, MOSFET Transistor
Package

DirectFET-7
Description

Trans MOSFET N-CH 150V 4.9A 7Pin Direct-FET MZ T/R
Documentation

Datasheet

IRF6775MTR1PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF6775MTR1PBF Specifications

Attribute	Attribute Value

Part Number	IRF6775MTR1PBF
Manufacturer	International Rectifier
ChipWorker Part#	CW364273309
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	DirectFET-7
Power Rating	89 W
Drain to Source Resistance (on) (Rds)	47 mΩ
Polarity	N-Channel
Power Dissipation	89 W
Part Family	IRF6775M
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	150 V
Breakdown Voltage (Drain to Source)	150 V
Continuous Drain Current (Ids)	28.0 A, 31.0 A, 4.90 A
Input Capacitance (Ciss)	1411pF @25V(Vds)
Input Power (Max)	2.8 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
