IRF7389TRPBF - Infineon

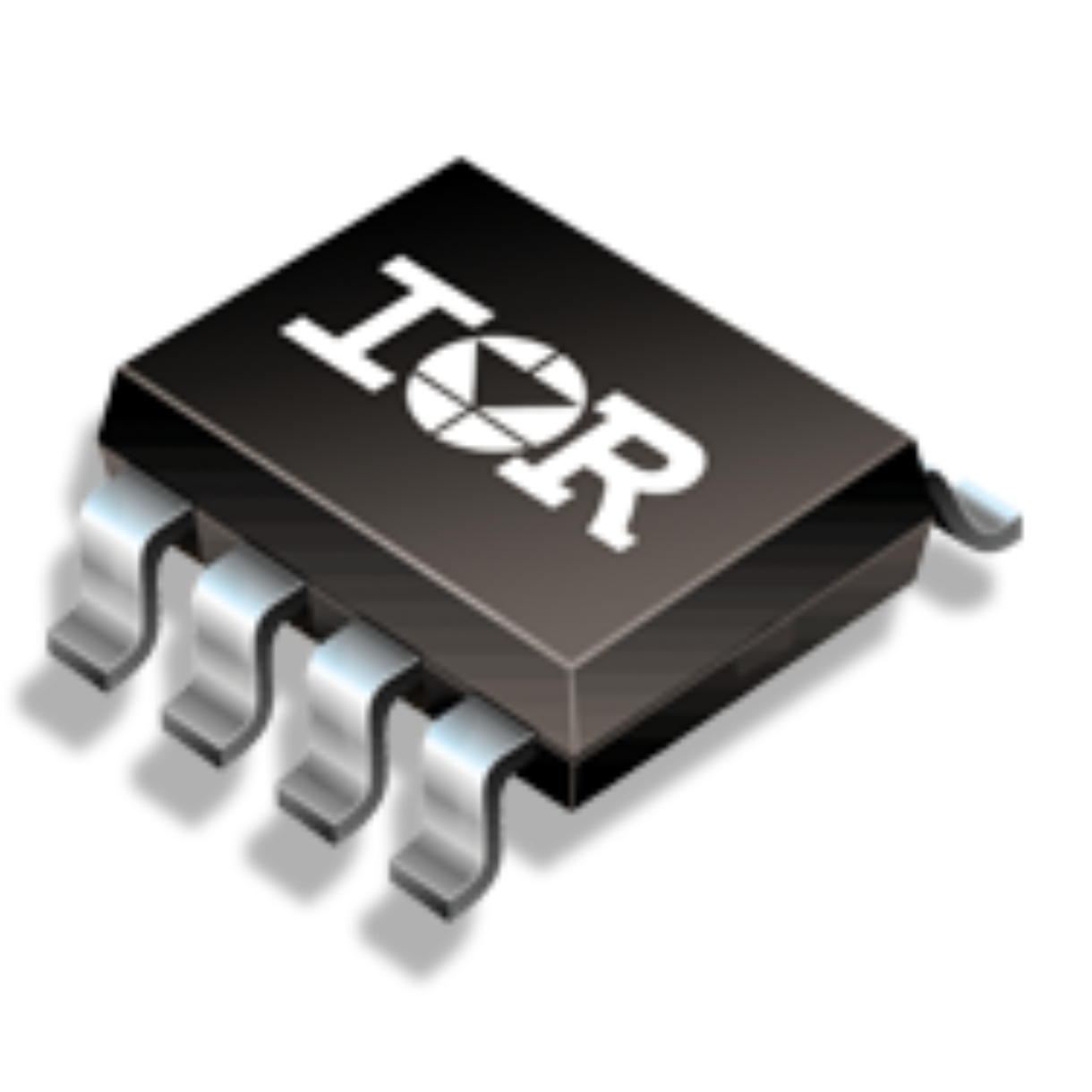

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF7389TRPBF
Manufacturer

Infineon
ChipWorker Part#

CW2693000
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC N+P 30V 7.3A/5.3A
Documentation

Datasheet

IRF7389TRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF7389TRPBF Specifications

Attribute	Attribute Value

Part Number	IRF7389TRPBF
Manufacturer	Infineon
ChipWorker Part#	CW2693000
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2.5 W
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.023 Ω
Polarity	N+P
Power Dissipation	2.5 W
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	7.3A/5.3A
Input Capacitance (Ciss)	650pF @25V(Vds)
Input Power (Max)	2.5 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2500 mW
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRF7389TRPBF is a dual N/P-channel MOSFET utilizes advanced processing techniques to achieve the lowest possible ON-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device. The HEXFET Power MOSFET is extremely efficient device for use in a wide variety of applications. The SO-8 has been modified through a customized lead-frame for enhanced thermal characteristics and dual-die capability making it ideal in a variety of power applications. With these improvements, multiple devices can be used in an application with dramatically reduced board space.
Generation V technology
Ultra low ON-resistance
Complimentary half bridge
Surface-mount device
Fully avalanche rated
