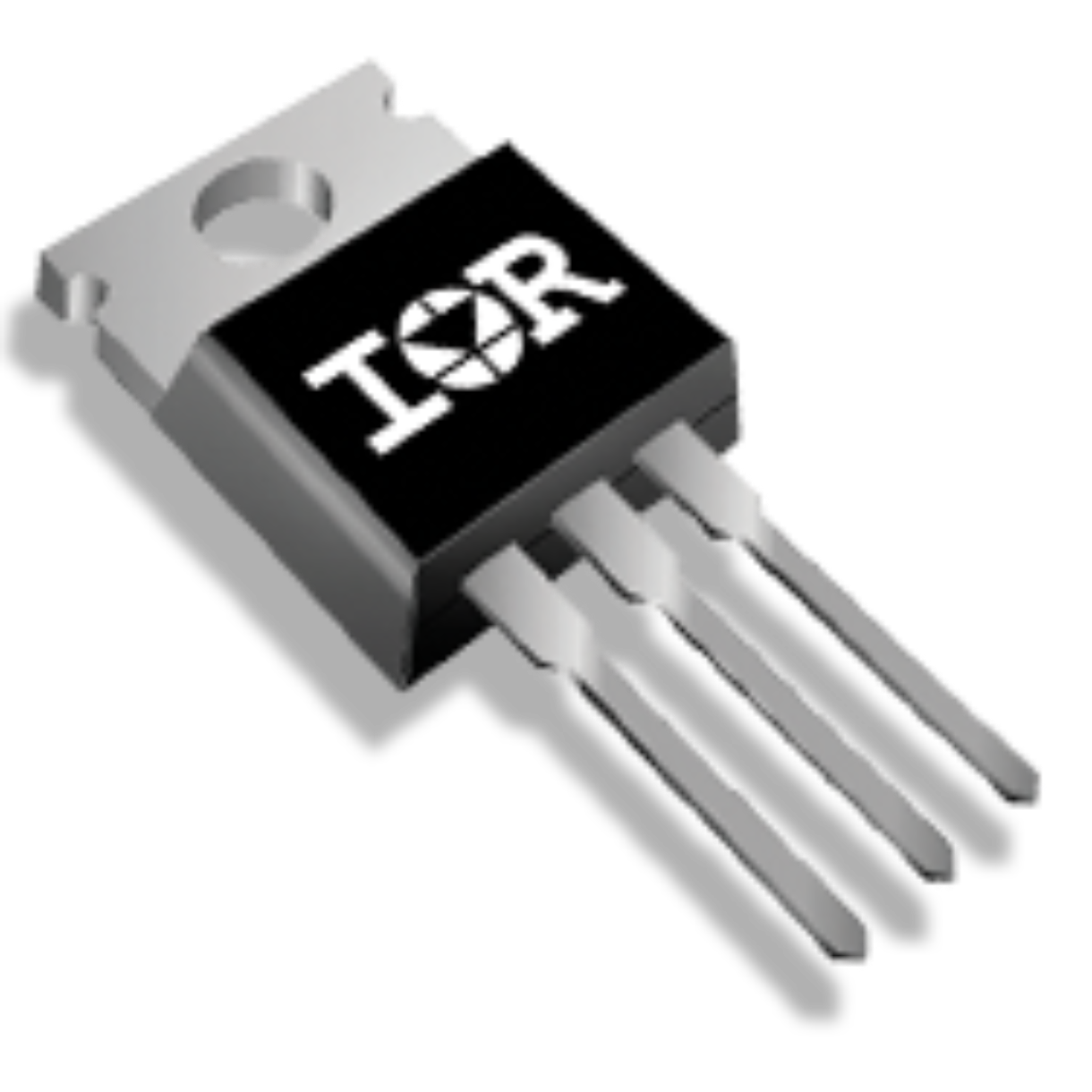

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFB59N10DPBF
Manufacturer

Infineon
ChipWorker Part#

CW10812433
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220AB N-CH 100V 59A
Documentation

Datasheet

IRFB59N10DPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFB59N10DPBF Specifications

Attribute	Attribute Value

Part Number	IRFB59N10DPBF
Manufacturer	Infineon
ChipWorker Part#	CW10812433
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	100 V
Current Rating	59.0 A
Power Rating	200 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.025 Ω
Polarity	N-Channel
Power Dissipation	200 W
Part Family	IRFB59N10D
Threshold Voltage	5.5 V
Input Capacitance	2450 pF
Drain to Source Voltage (Vds)	100 V
Breakdown Voltage (Drain to Source)	100 V
Continuous Drain Current (Ids)	59.0 A
Rise Time	90 ns
Input Capacitance (Ciss)	2450pF @25V(Vds)
Input Power (Max)	3.8 W
Fall Time	12 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.8W (Ta), 200W (Tc)
	expand all
Size-Length	8.77 mm
Size-Width	4.4 mm
Size-Height	15.65 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRFB59N10DPBF is a HEXFET® single N-channel Power MOSFET offers low gate-to-drain charge to reduce switching losses. It is suitable for high frequency DC-to-DC converters.
Fully characterized capacitance including effective COSS to simplify design
Fully characterized avalanche voltage and current
