IRFP460APBF - VISHAY

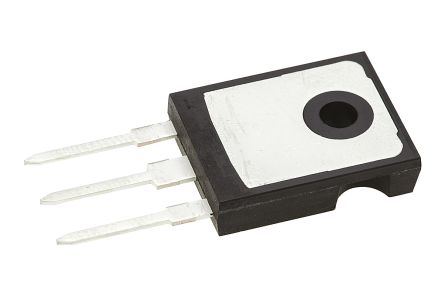

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFP460APBF
Manufacturer

VISHAY
ChipWorker Part#

CW802967
Category

MOSFET, MOSFET Transistor
Package

TO-247-3
Description

Trans MOSFET N-CH 500V 20A 3Pin(3+Tab) TO-247AC
Documentation

Datasheet

IRFP460APBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFP460APBF Specifications

Attribute	Attribute Value

Part Number	IRFP460APBF
Manufacturer	VISHAY
ChipWorker Part#	CW802967
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	500 V
Current Rating	20.0 A
Power Rating	280 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.27 Ω
Polarity	N-Channel
Power Dissipation	280 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	500 V
Breakdown Voltage (Drain to Source)	500 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	20.0 A
Rise Time	55 ns
Input Capacitance (Ciss)	3100pF @25V(Vds)
Input Power (Max)	280 W
Fall Time	39 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	280 W
	expand all
Size-Length	15.87 mm
Size-Width	5.31 mm
Size-Height	20.7 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

Single N-Channel 500 V 0.27 Ohms Flange Mount Power Mosfet - TO-247
