IRFZ48NSPBF - Infineon

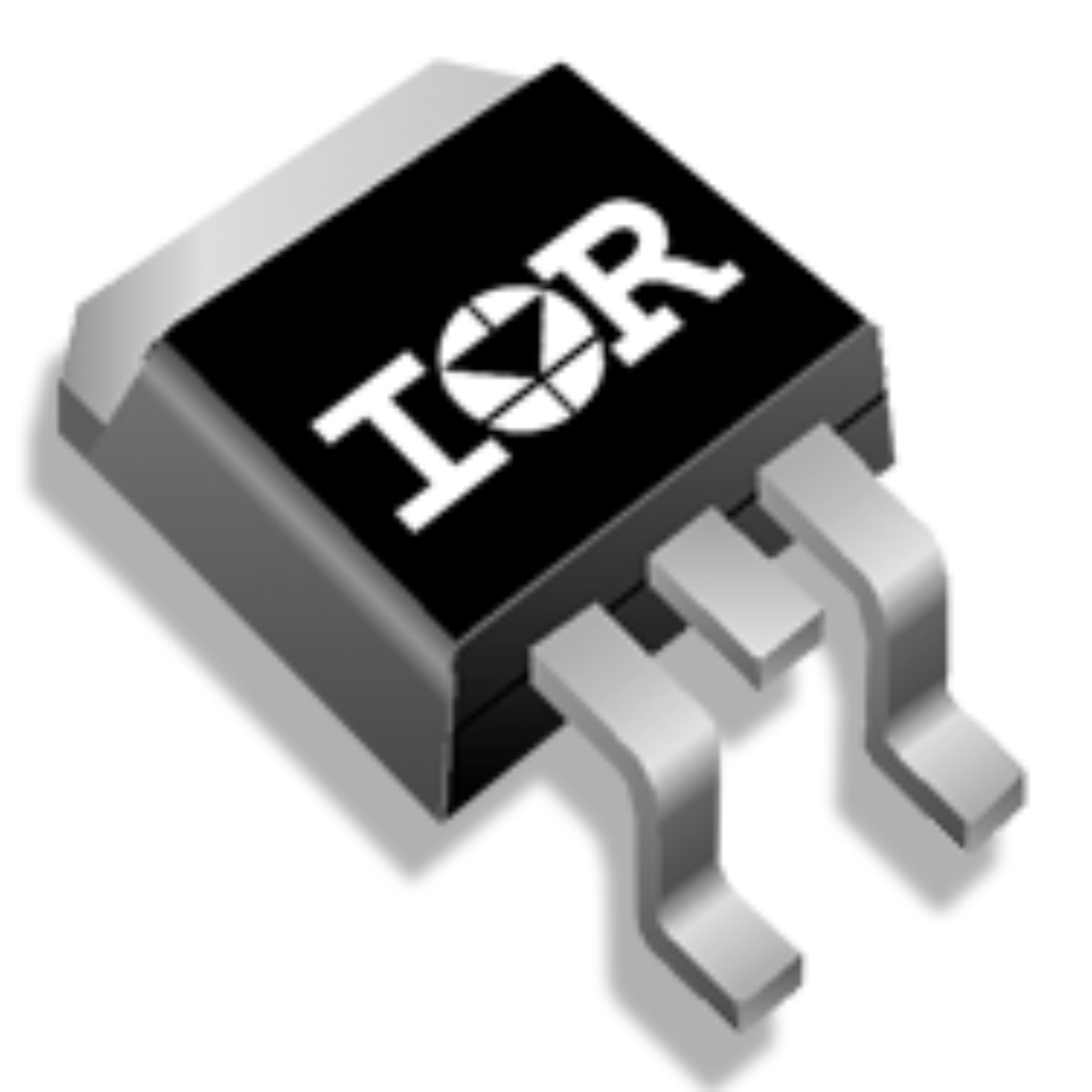

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFZ48NSPBF
Manufacturer

Infineon
ChipWorker Part#

CW12946667
Category

MOSFET, MOSFET Transistor
Package

TO-263-3
Description

D2PAK N-CH 55V 64A
Documentation

Datasheet

IRFZ48NSPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFZ48NSPBF Specifications

Attribute	Attribute Value

Part Number	IRFZ48NSPBF
Manufacturer	Infineon
ChipWorker Part#	CW12946667
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Power Rating	140 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.014 Ω
Polarity	N-Channel
Power Dissipation	130 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	55 V
Continuous Drain Current (Ids)	64A
Rise Time	78 ns
Input Capacitance (Ciss)	1970pF @25V(Vds)
Fall Time	50 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.8W (Ta), 130W (Tc)
	expand all
Size-Length	10.67 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Material	Silicon
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Not For New Designs
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

The IRFZ48NSPBF is a HEXFET® single N-channel Power MOSFET utilizes advanced processing techniques to achieve extremely low ON-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design, provides an extremely efficient and reliable operation. The surface-mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible ON-resistance in any existing surface-mount package. It is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2W in a typical surface-mount application.
Advanced process technology
Fast switching
Fully avalanche rating
Low static drain-to-source ON-resistance
Dynamic dV/dt rating

expand all
