IRGB14C40LPBF - Infineon

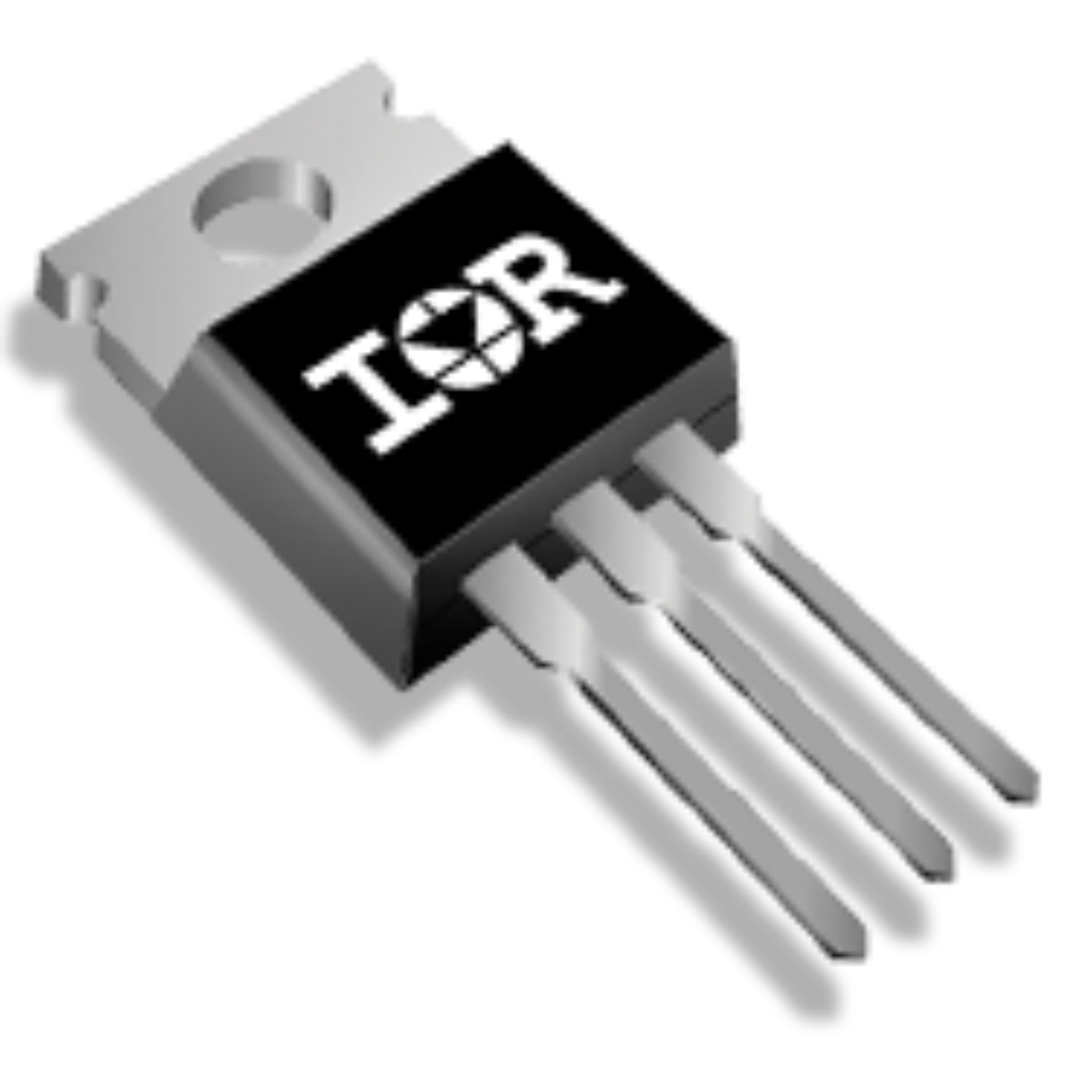

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRGB14C40LPBF
Manufacturer

Infineon
ChipWorker Part#

CW9899159
Category

IGBT Transistor, IGBT Module
Package

TO-220-3
Description

IGBT Single Transistor, 20A, 1.75V, 125W, 430V, TO-220AB, 3Pins
Documentation

Datasheet

IRGB14C40LPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRGB14C40LPBF Specifications

Attribute	Attribute Value

Part Number	IRGB14C40LPBF
Manufacturer	Infineon
ChipWorker Part#	CW9899159
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	125 W
Number of Positions	3 Position
Polarity	N-Channel
Power Dissipation	125 W
Rise Time	2.40 µs
Breakdown Voltage (Collector to Emitter)	430 V
Thermal Resistance	1.2℃/W (RθJC)
Input Power (Max)	125 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	125 W
	expand all
Size-Length	10.54 mm
Size-Width	4.69 mm
Size-Height	15.24 mm
Operating Temperature	-40℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The IRGB14C40LPBF is a 430V Ignition IGBT with on chip gate emitter and gate collector clamps. The advanced IGBT process family includes a MOS gated, N-channel logic level gate drive which is intended for coil on plug automotive ignition applications and small engine ignition applications.
