IRL3103 - International Rectifier

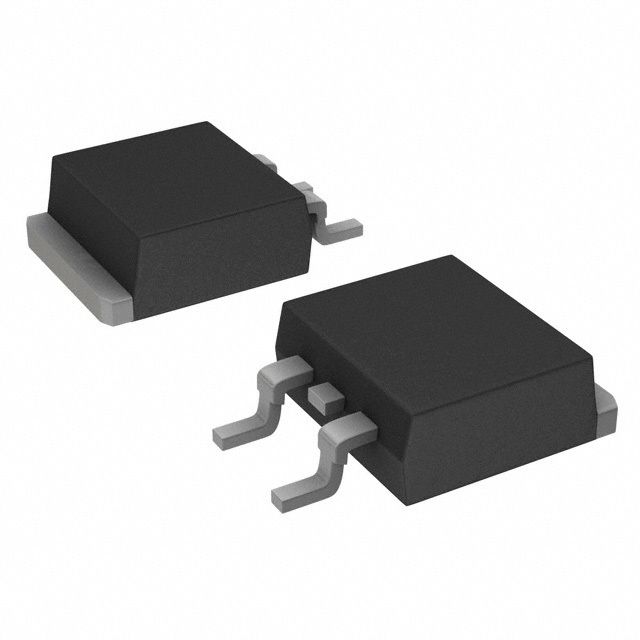

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRL3103
Manufacturer

International Rectifier
ChipWorker Part#

CW329883666
Category

MOSFET, MOSFET Transistor
RoHS

Lead free / RoHS Compliant
Description

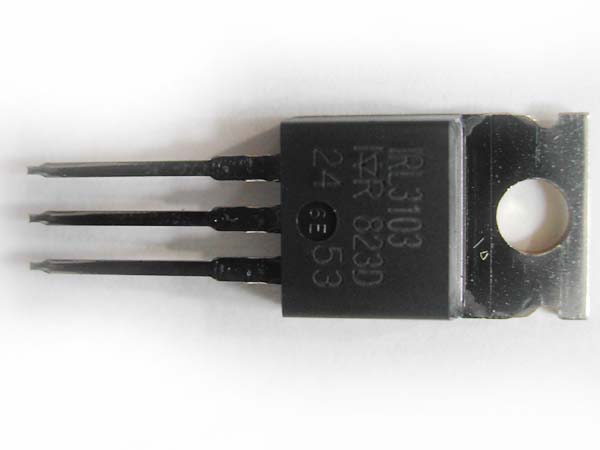

30V Single N-Channel HEXFET Power MOSFET in a TO-220AB package
Documentation

Datasheet

IRL3103 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRL3103 Specifications

Attribute	Attribute Value

Part Number	IRL3103
Manufacturer	International Rectifier
ChipWorker Part#	CW329883666
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	TO-220
Voltage Rating (DC)	30.0 V
Current Rating	64.0 A
Polarity	N-Channel
Power Dissipation	83.0 W
Part Family	IRL3103
Drain to Source Voltage (Vds)	30.0 V
Breakdown Voltage (Drain to Source)	30.0V (min)
Continuous Drain Current (Ids)	64.0 A
Rise Time	120 ns
	expand all
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
