IRLIZ34NPBF - Infineon

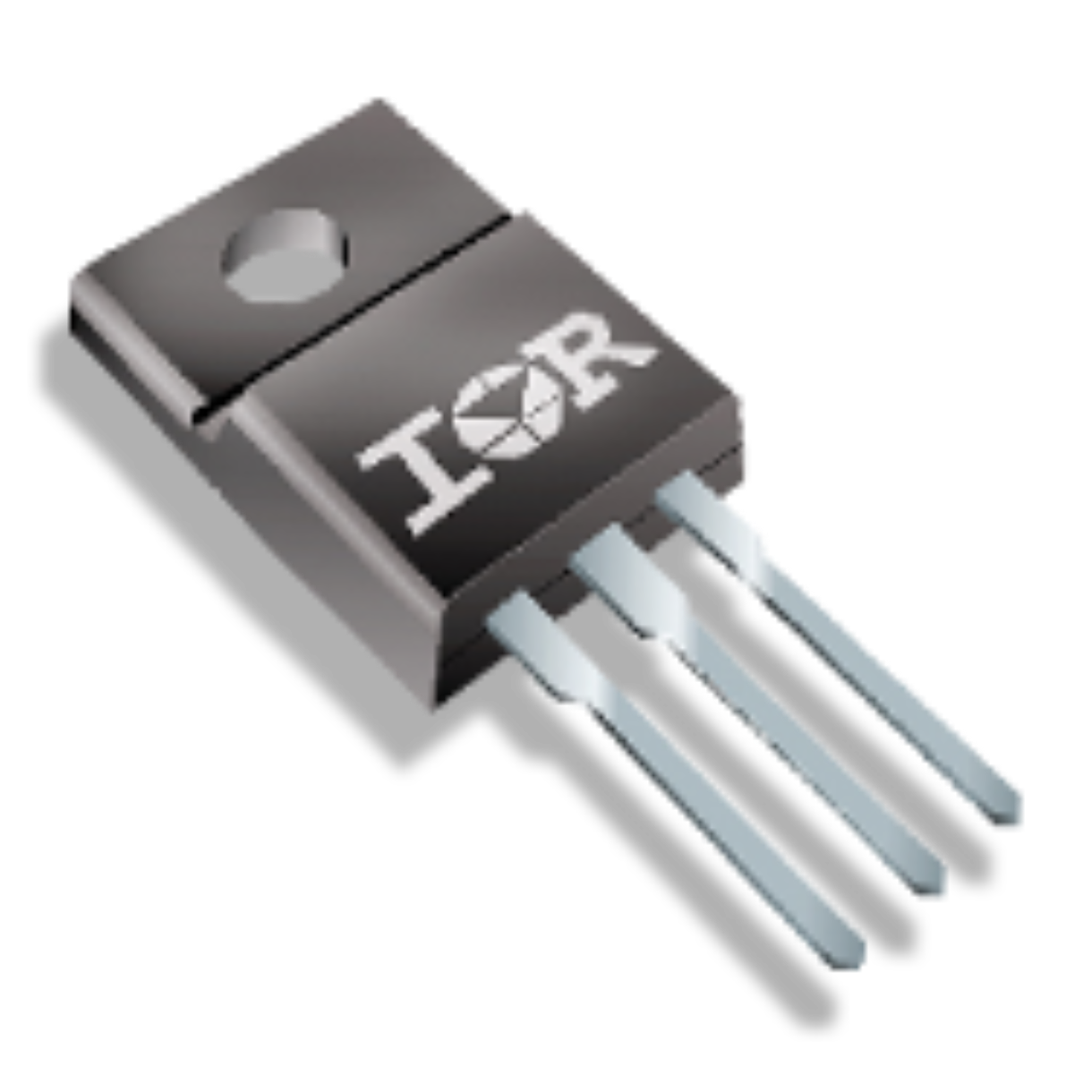

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRLIZ34NPBF
Manufacturer

Infineon
ChipWorker Part#

CW13490000
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220FP N-CH 55V 22A
Documentation

Datasheet

IRLIZ34NPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRLIZ34NPBF Specifications

Attribute	Attribute Value

Part Number	IRLIZ34NPBF
Manufacturer	Infineon
ChipWorker Part#	CW13490000
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	31 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.035 Ω
Polarity	N-Channel
Power Dissipation	31 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	55 V
Continuous Drain Current (Ids)	22A
Rise Time	10 ns
Input Capacitance (Ciss)	880pF @25V(Vds)
Fall Time	21 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	37W (Tc)
	expand all
Size-Length	10.6 mm
Size-Width	4.8 mm
Size-Height	8.9 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRLIZ34NPBF is a 55V single N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using advanced planar technology.
Isolated package
2.5kVrms High voltage isolation
4.8mm Sink to lead creepage distance
Fully avalanche rated
Optimized for logic level drive

expand all
