ISP1102 - Philips

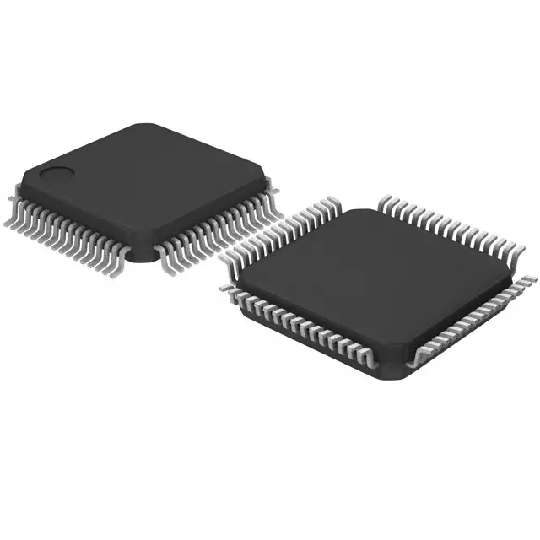

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

29 points

Part No

ISP1102
Manufacturer

Philips
ChipWorker Part#

CW542153497
Description

Advanced Universal Serial Bus transceiver
Documentation

Datasheet
Ships from

Moscow
Наличие

32735 pcs In Stock
Estimated Price

Price on Request

Buy ISP1102

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

ISP1102 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

ISP1102 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	ISP1102
Manufacturer	Philips
ChipWorker Part#	CW542153497
Documentation	Datasheet
	expand all
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

General description
The ISP1102 Universal Serial Bus (USB) transceiver is fully compliant with the Universal Serial Bus Specification Rev. 2.0. The ISP1102 can transmit and receive USB data at full-speed (12 Mbit/s).
The transceiver allows USB Application Specific ICs (ASICs) and Programmable Logic Devices (PLDs) with power supply voltages from 1.65 to 3.6 V to interface with the physical layer of the USB. The transceiver has an integrated 5 V-to-3.3 V voltage regulator for direct powering via the USB supply line VBUS. The transceiver has an integrated voltage detector to detect the presence of the VBUSvoltage (VCC(5.0)). When VCC(5.0)or Vreg(3.3)is lost, the D+ and D−pins can be shared with other serial protocols.
Features
■Complies withUniversal Serial Bus Specification Rev. 2.0
■Supports data transfer at full-speed (12 Mbit/s)
■Integrated 5 V-to-3.3 V voltage regulator for powering via USB line VBUS
■VBUSvoltage presence indication on pin VBUSDET
■VP and VM pins function in bi-directional mode allowing pin count saving for ASIC interface
■Used as USB device transceiver or USB host transceiver
■Stable RCV output during single-ended zero (SE0) condition
■Two single-ended receivers with hysteresis
■Low-power operation
■Supports I/O voltage range from 1.65 to 3.6 V
■±12 kV ESD protection (ISP1102W) at D+, D−, VCC(5.0)and GND pins
■Full industrial operating temperature range from−40 to +85 C
■Available in HBCC16 and HVQFN14 lead-free and halogen-free packages.
Applications
■Portable electronic devices, such as:
◆Mobile phone
◆Digital Still Camera (DSC)
◆Personal Digital Assistant (PDA)
◆Information Appliance (IA).
