ISP752TFUMA1 - Infineon

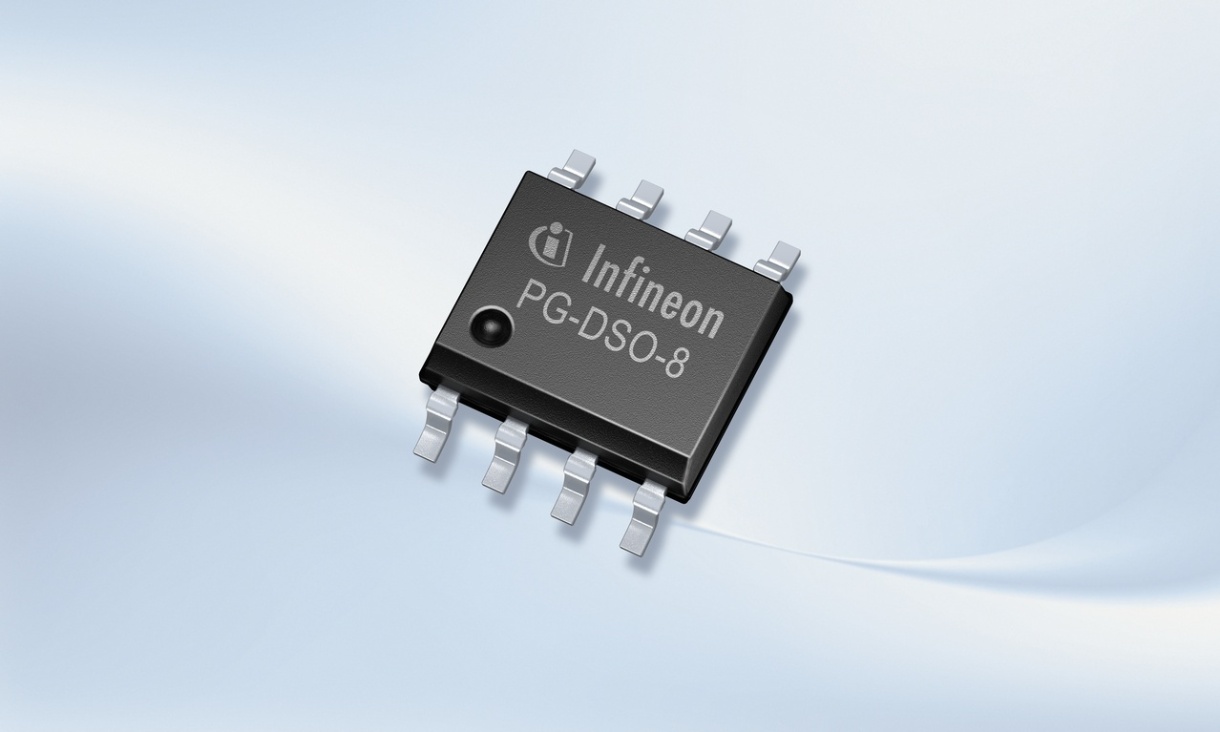

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ISP752TFUMA1
Manufacturer

Infineon
ChipWorker Part#

CW5530082
Category

Power Distribution
Package

PG-DSO-8
Description

Power Switch ICs - Power Distribution Smart High Side 200mOhm 6-52V 1 3A
Documentation

Datasheet

ISP752TFUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISP752TFUMA1 Specifications

Attribute	Attribute Value

Part Number	ISP752TFUMA1
Manufacturer	Infineon
ChipWorker Part#	CW5530082
Category	Power Distribution
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-DSO-8
Number of Outputs	1 Output
Output Current	1.3 A
Supply Current	0.8 mA
Number of Positions	8 Position
Power Dissipation	1.5 W
Output Current (Max)	1.3 A
Output Current (Min)	1.3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Power Dissipation (Max)	1500 mW
Input Voltage	52 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.45 mm
Operating Temperature	-30℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The ISP752T is a high side Power Switch N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology. Providing embedded protection and diagnostic functions.
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown with restart
Overvoltage protection (including load dump)
Fast demagnetization of inductive loads
Reverse battery protection with external resistor
Loss of GND and loss of protection
Very low standby current
Green product
