JS202011AQN ,Slide Switch, Switch Slide - C&K Components

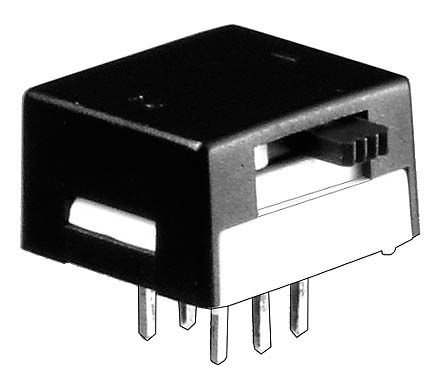

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

162 points

Part No

JS202011AQN
Manufacturer

C&K Components
ChipWorker Part#

CW5398929
Category

Slide Switch, Switch Slide
Package

300
Description

SLIDE SWITCH, DPDT, LATCHED, 0.3A, 6VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
Documentation

Datasheet
Ships from

Moscow
Наличие

690 pcs In Stock
Estimated Price

$ 0.19

Buy JS202011AQN

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

JS202011AQN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

JS202011AQN Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	JS202011AQN
Manufacturer	C&K Components
ChipWorker Part#	CW5398929
Category	Slide Switch, Switch Slide
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	300
Supply Voltage (DC)	6.00 V
Voltage Rating (DC)	6 V
Insulation Resistance	100 MΩ
Number of Rows	2 Row
Orientation	Right Angle
Contacts Type	DPDT
Contact Resistance	70 mΩ
Contact Current Rating	0.3 A
Current Rating (Max)	0.3A @6VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	6 V
Voltage Rating (DC Max)	30 V
Maximum Contact Resistance (Max)	70 mΩ
	expand all
Size-Length	9 mm
Size-Height	3.5 mm
Contact Material	Copper Alloy
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509050
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The JS202011AQN is a double-pole double-throw sub miniature Slide Switch with On-On function and right angle orientation. Copper alloy silver-plated contacts and brass silver plated terminals. Black 4/6 nylon (UL94V-2) housing and actuator, silver-plated brass terminals, 100MR insulation resistance and 500V dielectric strength.
Positive detent
Low profile
IR reflow to 260° solder profile
