LC1D80F7 - Schneider Electric

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LC1D80F7
Manufacturer

Schneider Electric
ChipWorker Part#

CW136584637
Category

Industrial Relay
Description

Contactor, Non-Reversing, 600VAC, 80A, 3Pole, 110VAC Coil, DIN Rail, TeSys D
Documentation

Datasheet

LC1D80F7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LC1D80F7 Specifications

Attribute	Attribute Value

Part Number	LC1D80F7
Manufacturer	Schneider Electric
ChipWorker Part#	CW136584637
Category	Industrial Relay
Documentation	Datasheet
Mounting Style	DIN Rail
Operating Voltage	600 VAC
Power Rating	45 kW
Contacts Type	3PST-NO
Contact Current Rating	125 A
Coil Voltage	110 VAC
Coil Voltage (AC)	110 V
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	-5 ℃
	expand all
Size-Length	85 mm
Size-Width	85 mm
Operating Temperature	-5℃ ~ 55℃
RoHS	RoHS Compliant

Product Description

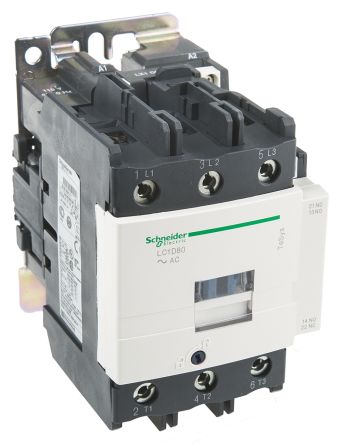

The LC1D80F7 is a TeSys D 3-pole Contactor with 3NO power pole and 1NO-1NC auxiliary contacts. TeSys D contactor is designed for perfect integration in control systems. It can be used to create motor starters for any type of application.
AC-1 and AC-3 utilization category
Rated operational voltage of 690VAC at 25Hz to 400Hz and 300VDC for power circuit
Rated operational current of 125A at
45kW at 415VAC to 440VAC, 50Hz/60Hz Motor power
110VAC at 50Hz/60Hz Control circuit voltage
UL94V-1 Flammability rating
-5 to 60°C Ambient operating temperature range
IP2x front face conforming to IEC 60529 standard protection rating
12.5W (AC-1) and 5.1W (AC-3) Power dissipation per pole
Rated breaking capacity of 1100A at 440V for power circuit conforming to IEC 60947 standard
