LM2902YPT - ST Microelectronics

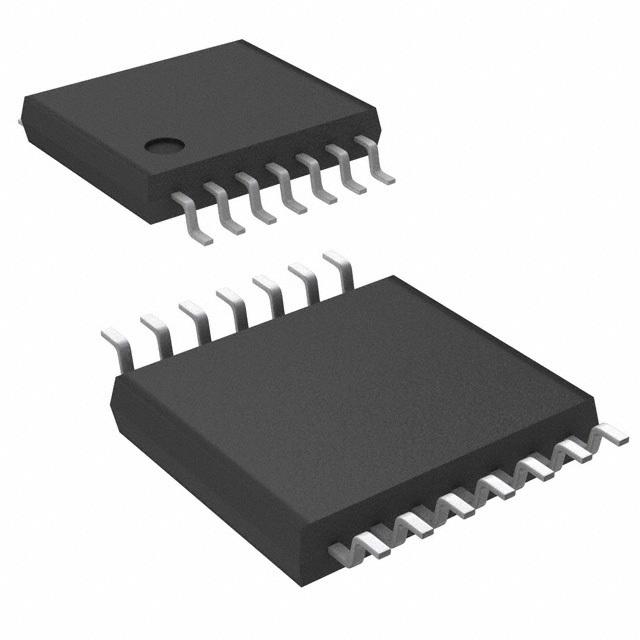

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM2902YPT
Manufacturer

ST Microelectronics
ChipWorker Part#

CW14818759
Category

Amplifier, Buffer IC
Package

TSSOP-14
Description

LM2902 Series 30V 1.3MHz Low Power Quad Operational Amplifier - TSSOP-14
Documentation

Datasheet

LM2902YPT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM2902YPT Specifications

Attribute	Attribute Value

Part Number	LM2902YPT
Manufacturer	ST Microelectronics
ChipWorker Part#	CW14818759
Category	Amplifier, Buffer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Output Current	20 mA
Supply Current	1.5 mA
Number of Circuits	4 Circuit
Common Mode Rejection Ratio	80 dB
Gain Bandwidth Product	1.3 MHz
Input Offset Voltage	2 mV
Input Bias Current	20 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.3 MHz
Minimum CMRR Range	70 dB
Supply Voltage	3V ~ 30V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

This circuit consists of four independent, high-gain operational amplifiers (op amps) which employ internal frequency compensation and are specifically designed for automotive and industrial control systems.
The device operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low-power supply current drain is independent from the power supply voltage magnitude.
