LM7171BIN/NOPB ,Operational Amplifier, OP Amp IC - TI

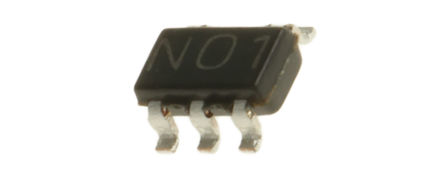

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

138 points

Part No

LM7171BIN/NOPB
Manufacturer

TI
ChipWorker Part#

CW5195666
Category

Operational Amplifier, OP Amp IC
Package

PDIP-8
Description

TEXAS INSTRUMENTS LM7171BIN/NOPB Operational Amplifier, Single, 1 Amplifier, 125MHz, 4100V/µs, 5.5V to 36V, DIP, 8Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

140 pcs In Stock
Estimated Price

$ 1.78

Buy LM7171BIN/NOPB

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LM7171BIN/NOPB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LM7171BIN/NOPB Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LM7171BIN/NOPB
Manufacturer	TI
ChipWorker Part#	CW5195666
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	36.0 V
Output Current	100 mA
Supply Current	6.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	70 dB
Input Offset Drift	35.0 µV/K
Bandwidth	125 MHz
Slew Rate	4.10 kV/μs
Gain Bandwidth Product	200 MHz
Input Offset Voltage	200 µV
Input Bias Current	2.7 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	220 MHz
Gain Bandwidth	125 MHz
Minimum CMRR Range	70 dB
Supply Voltage	5.5V ~ 36V
	expand all
Size-Length	9.27 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The LM7171BIN/NOPB is a very high speed high output current voltage Feedback Amplifier that has the slewing characteristic of a current feedback amplifier, yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171 is stable for gains as low as +2 or -1. It provides a very high slew rate at 4100V/µs and a wide unity-gain bandwidth of 200MHz while consuming only 6.5mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100mA output current, the amplifier can be used for video distribution, as a transformer driver or as a laser diode driver. Operation on ±15V power supplies allows for large signal swings and provides greater dynamic range and signal-to-noise ratio. The amplifier offers low SFDR and THD, ideal for ADC/DAC systems. In addition, the LM7171 is specified for ±5V operation for portable applications.
Easy-to-use voltage feedback topology
6.5mA Low supply current
85dB High open loop gain
100mA High output current
0.01% Differential gain
0.02° Differential phase
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
