LQW18ANR39J00D - muRata

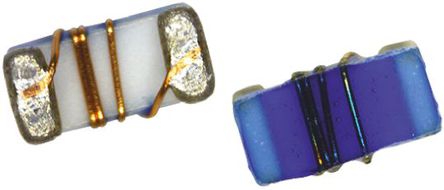

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQW18ANR39J00D
Manufacturer

muRata
ChipWorker Part#

CW8578721
Category

Inductor
Package

0603
Description

0603 390nH ±5%
Documentation

Datasheet

LQW18ANR39J00D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQW18ANR39J00D Specifications

Attribute	Attribute Value

Part Number	LQW18ANR39J00D
Manufacturer	muRata
ChipWorker Part#	CW8578721
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	1608
Case/Package	0603
Current Rating	80 mA
Capacitance Tolerance	±5 %
Inductance	390 nH
Self Resonant Frequency	800 MHz
Part Family	LQW
Shielding	No
Inductance Tolerance	±5 %
Test Frequency	100 MHz
DC Resistance (DCR)	≤6.2 Ω
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	6.2 Ω
	expand all
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	4000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

390nH Unshielded Wirewound Inductor 80mA 6.2Ohm Max 0603 (1608 Metric)
