LSM303DLHCTR - ST Microelectronics

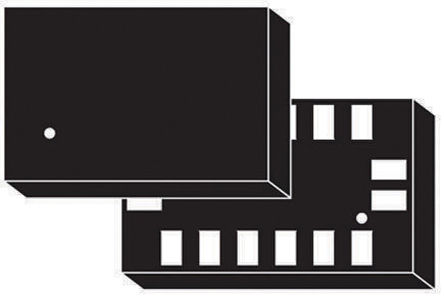

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoLSM303DLHCTR
-
ManufacturerST Microelectronics
-
ChipWorker Part#CW42560352
-
CategoryMotion Sensor
-
PackageLGA-14
-
DescriptioneCompass Module Digital Output 2.5V/3.3V 14Pin LGA T/R
-
DocumentationDatasheet
