MAC15N - ON Semiconductor

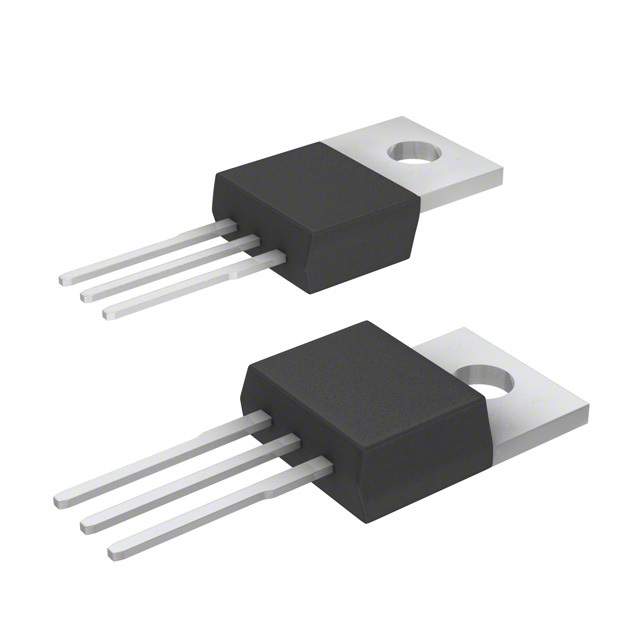

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAC15N
Manufacturer

ON Semiconductor
ChipWorker Part#

CW128544396
Category

TRIAC Diode, TRIAC
Package

TO-220-3
Description

Thyristor TRIAC 800V 150A 3Pin(3+Tab) TO-220AB Rail
Documentation

Datasheet

MAC15N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAC15N Specifications

Attribute	Attribute Value

Part Number	MAC15N
Manufacturer	ON Semiconductor
ChipWorker Part#	CW128544396
Category	TRIAC Diode, TRIAC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Holding Current (Max)	40 mA
	expand all
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

Triacs
Silicon Bidirectional Thyristors
Designed for high performance full-wave AC control applications where high noise immunity and high commutating di/dt are required.
Features
•Blocking Voltage to 800 Volts
•On-State Current Rating of 15 Amperes RMS at 80°C
•Uniform Gate Trigger Currents in Three Modes
•High Immunity to dv/dt − 250 V/s minimum at 125°C
•Minimizes Snubber Networks for Protection
•Industry Standard TO-220AB Package
•High Commutating di/dt − 9.0 A/ms minimum at 125°C
•Operational in Three Quadrants, Q1, Q2, and Q3
•Pb−Free Packages are Available
