MAX232AMJE - Maxim Integrated

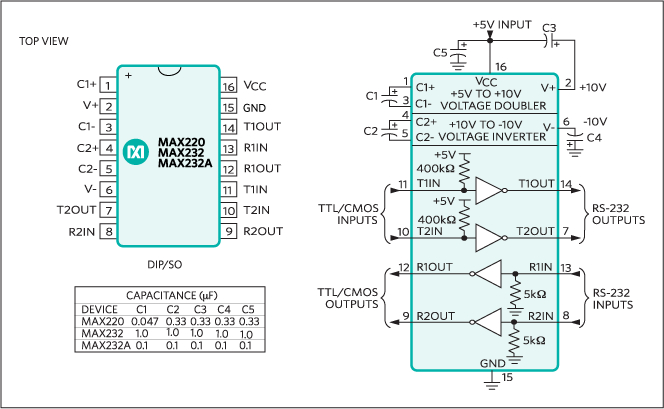

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX232AMJE
Manufacturer

Maxim Integrated
ChipWorker Part#

CW90063670
Category

Interface IC, Interface Controller
Package

CDIP-16
Description

Dual Transmitter/Receiver RS-232 16Pin CDIP N
Documentation

Datasheet

MAX232AMJE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX232AMJE Specifications

Attribute	Attribute Value

Part Number	MAX232AMJE
Manufacturer	Maxim Integrated
ChipWorker Part#	CW90063670
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	CDIP-16
Supply Voltage (DC)	5.00V (max)
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	21.34 mm
Size-Width	7.87 mm
Size-Height	3.3 mm
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

2/2 Transceiver Full RS232 16-CERDIP
