MAX5500 - Maxim Integrated

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX5500
Manufacturer

Maxim Integrated
ChipWorker Part#

CW481490558
RoHS

Lead free / RoHS Compliant
Description

Low-Power, Quad, 12Bit Voltage-Output DACs with Serial InterfaceLow-Cost, +5V and +3V DAC with Shutdown and Configurable Output Amplifiers
Documentation

Datasheet

MAX5500 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX5500 Specifications

Attribute	Attribute Value

Part Number	MAX5500
Manufacturer	Maxim Integrated
ChipWorker Part#	CW481490558
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SSOP-20
	expand all
RoHS	RoHS Compliant

Product Description

Description

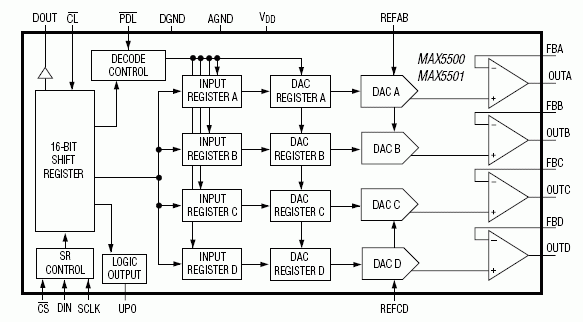

The MAX5500/MAX5501 integrate four low-power, 12-bit digital-to analog converters (DACs) and four precision output amplifiers in a small, 20-pin package. Each negative input of the four precision amplifiers is externally accessible providing flexibility in gain configurations, remote sensing, and high output drive capacity, making the MAX5500/MAX5501 ideal for industrial-process-control applications. Other features include software shutdown, hardware shutdown lockout, an active-low reset which clears all registers and DACs to zero, a user-programmable logic output, and a serial-data output.
Each DAC provides a double-buffered input organized as an input register followed by a DAC register. A 16-bit serial word loads data into each input register. The serial interface is compatible with SPI™/QSPI™/MICROWIRE™. The serial interface allows the input and DAC registers to be updated independently or simultaneously with a single software command. The 3-wire interface simultaneously updates the DAC registers. All logic inputs are TTL/CMOS-logic compatible. The MAX5500 operates from a single +5V power supply, and the MAX5501 operates from a single +3V power supply. The MAX5500/MAX5501 are specified over the extended -40°C to +105°C temperature range.
