Part No

MBRB20100CTG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW4862037
Category

Schottky Diode
Package

TO-263-3
Description

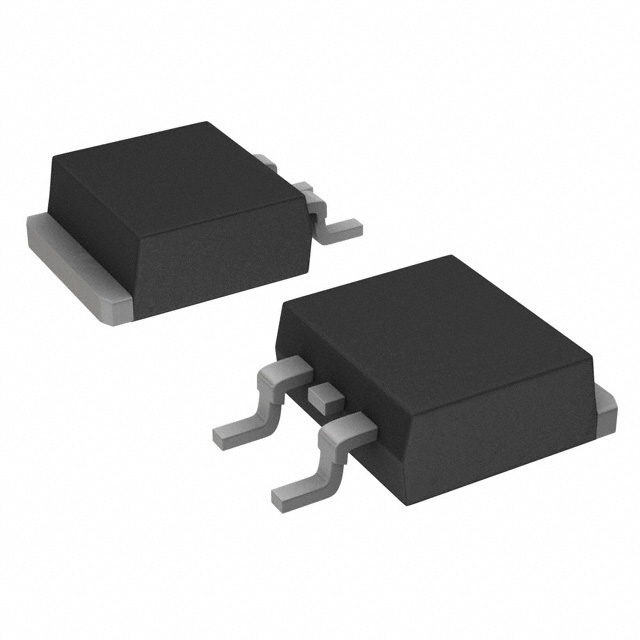

ON SEMICONDUCTOR MBRB20100CTG Schottky Rectifier, 100V, 10A, Dual Common Cathode, TO-263, 3Pins, 950mV
Documentation

Datasheet

MBRB20100CTG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MBRB20100CTG Specifications

Attribute	Attribute Value

Part Number	MBRB20100CTG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW4862037
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	100 V
Current Rating	20.0 A
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	0.95 V
Forward Current	10 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	950 mV
Forward Current (Max)	20 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	expand all
Size-Length	10.29 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The MBRB20100CTG is a Switch-mode Schottky Barrier Rectifier with UL94V-0 epoxy moulded case and all external surfaces corrosion resistant and terminal leads are readily solderable finish. The power rectifier is a state-of-the-art device that employs the use of the Schottky barrier principle with a platinum barrier metal.
Centre-tap configuration
Guard ring for stress protection
Low forward voltage
0.5A Peak repetitive reverse surge current (2µs/1kHz)
Epoxy meets UL94V-0
ESD sensitive device, take proper precaution while handling the device.
