MIC5201YM - Microchip

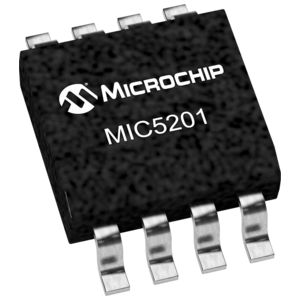

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MIC5201YM
Manufacturer

Microchip
ChipWorker Part#

CW32550376
Category

Voltage Regulator
Package

SOIC-8
Description

MIC5201 Series ADJ Output Voltage 200mA SMT Low Dropout Regulator - SOIC-8
Documentation

Datasheet

MIC5201YM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MIC5201YM Specifications

Attribute	Attribute Value

Part Number	MIC5201YM
Manufacturer	Microchip
ChipWorker Part#	CW32550376
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Outputs	1 Output
Output Current	200 mA
Number of Positions	8 Position
Power Dissipation	0.625 W
Quiescent Current	0.01 µA
voltage rating	270 mV
Input Voltage (Max)	16 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	15.6 V
Output Voltage (Min)	1.242 V
Output Current (Max)	0.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	26 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Linear Voltage Regulator IC 1 Output 200mA 8-SOIC
